23-1360 Mandrel

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

0491518 231360 Mandrel MW

NOTE: (Drift) For installing the radial shaft seal for the transmission drive shaft [discontinued]

Storage Location

Y8

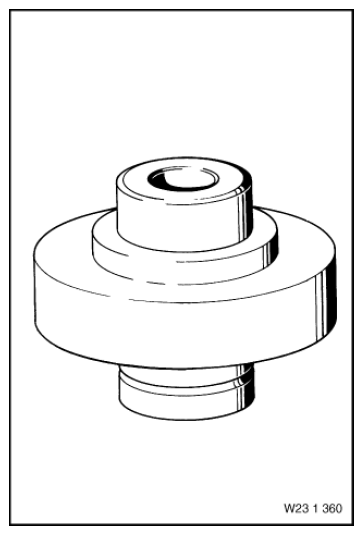

Fig 1: Identifying Mandrel (0491518)
G08493520Courtesy of BMW OF NORTH AMERICA, INC.
