23-1240 Mandrel

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

0491501 231240 Mandrel Minimum set: Mechanical tools MW

NOTE: (Drift) For fitting the radial sealing ring to the gearshift shaft [released]

Storage Location

A10

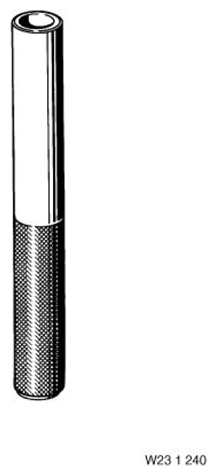

Fig 1: Identifying Mandrel (0491501)

Courtesy of BMW OF NORTH AMERICA, INC.
