23-0410 Mandrel

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

0496584 230410 Mandrel MW

NOTE: (drift) For driving in output shaft seal. [Released]

Storage Location

C54

B54

SI number

01 04 09 (517)

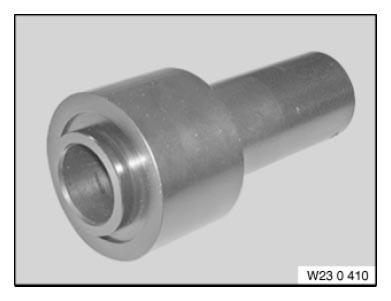

Fig 1: Identifying Mandrel (0496584)
G06876110Courtesy of BMW OF NORTH AMERICA, INC.
