2612011 Replacing grooved ball bearing in propeller shaft center bearing

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Replace PROPELLER SHAFT CENTER BEARING

Press grooved ball bearing using special tool 23 1 160 out of center mount (1).

NOTE: Illustration shows E46.

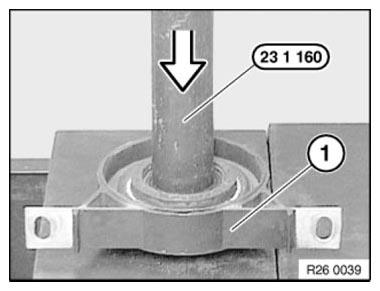

Fig 1: Pressing Grooved Ball Bearing Using Special Tool (23 1 160)

Courtesy of BMW OF NORTH AMERICA, INC.

Coat rubber-coated bearing seat of center mount (2) with Circolight.

Use special tools 33 3 202/33 3 203 to press grooved ball bearing (1) into center mount (2).

NOTE: Illustration shows E46.

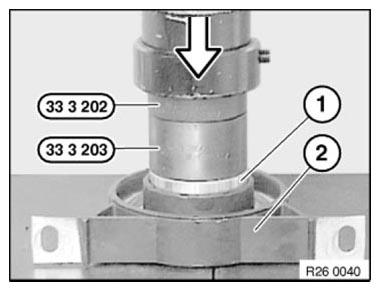

Fig 2: Pressing Deep Groove Ball Bearing Into Center Mount Using Special Tools (33 3 202/33 3 203)

Courtesy of BMW OF NORTH AMERICA, INC.
