Field of vision (no repairs acceptable)

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

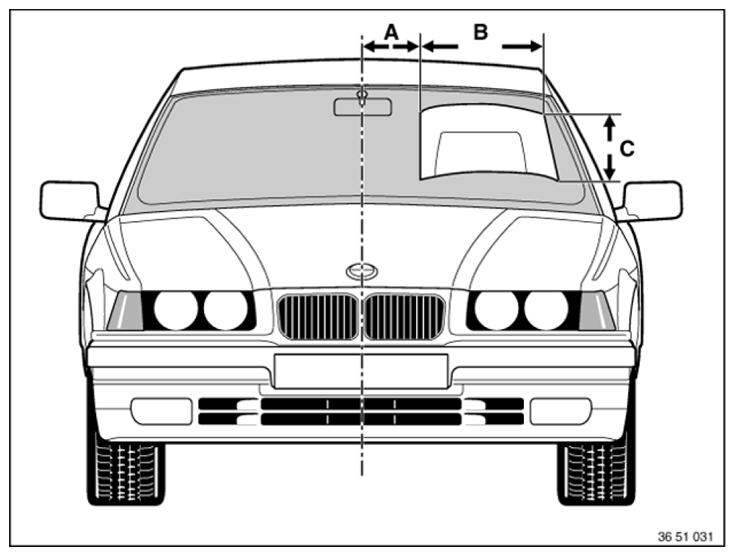

Fig 1: Identifying Height, Width And Gap Of Field View]
G06885728Courtesy of BMW OF NORTH AMERICA, INC.
  1. 50 mm (gap between field of view/center of vehicle)
  2. Up to end of wiper range, outside (field of view width)
  3. Restriction by wiper range (height of field of view)
IMPORTANT: Repairs must only be carried out outside of the field of vision (refer to Fig 1).

If the stone chip damage is outside the field of vision, refer to REPAIR INSTRUCTION  .
