Arrangement, flushing apparatus for transmissions A5S 310Z, A5S 560Z, A5S 360R/390R, A4S 200R, A5S 325Z
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

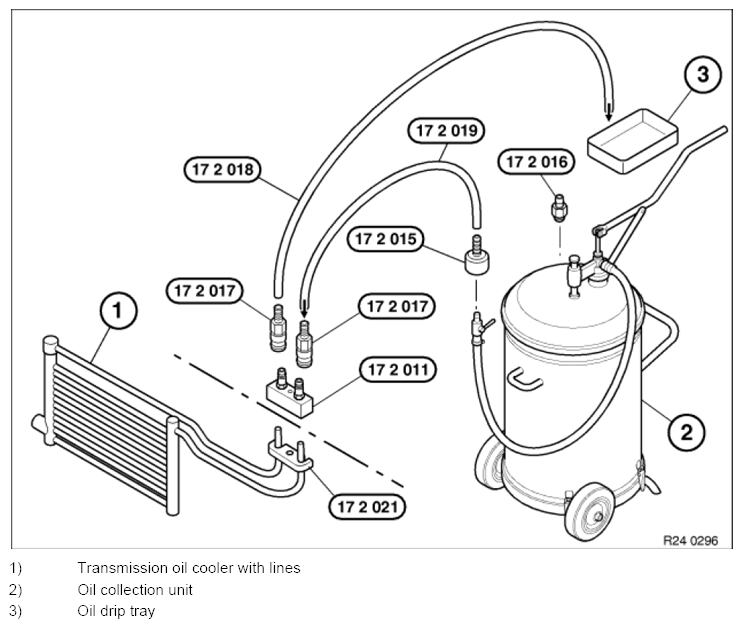

Fig 1: Arrangement Flushing Apparatus For Transmissions (A5S 310Z, A5S 560Z, A5S 360R/390R, A4S 200R, A5S 325Z)
- Transmission oil cooler with lines
- Oil collection unit
- Oil drip tray
17 2 011 Adapter for connecting transmission-side oil cooler lines (1)
17 2 015 Connection for oil collection unit (2), manufacturer: Deutsche Tecalemit or
17 2 016 Connection for oil collection unit (2), manufacturer: Horn
17 2 017 Quick-release coupling (2 pieces)
17 2 018 Hose to oil drip tray (3)
17 2 019 Hose to oil collection unit (2)
17 2 021 Mounting plate for adapter 17 2 011 for transmissions A5S 325Z, GA6HP26Z
