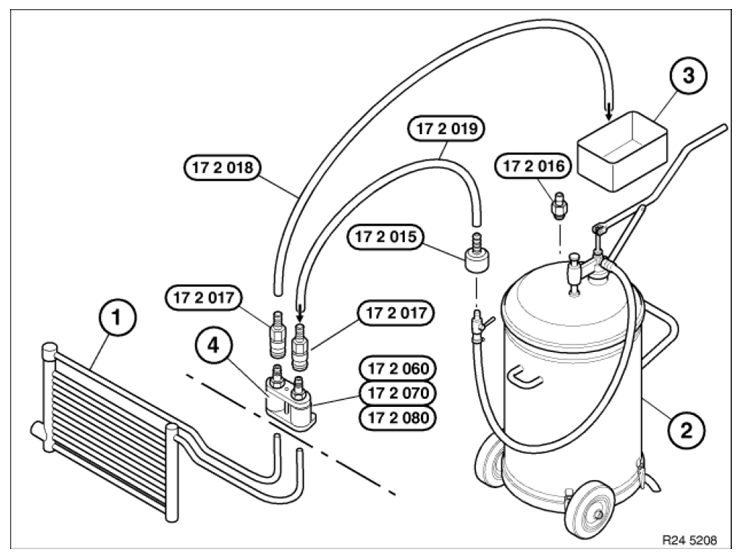

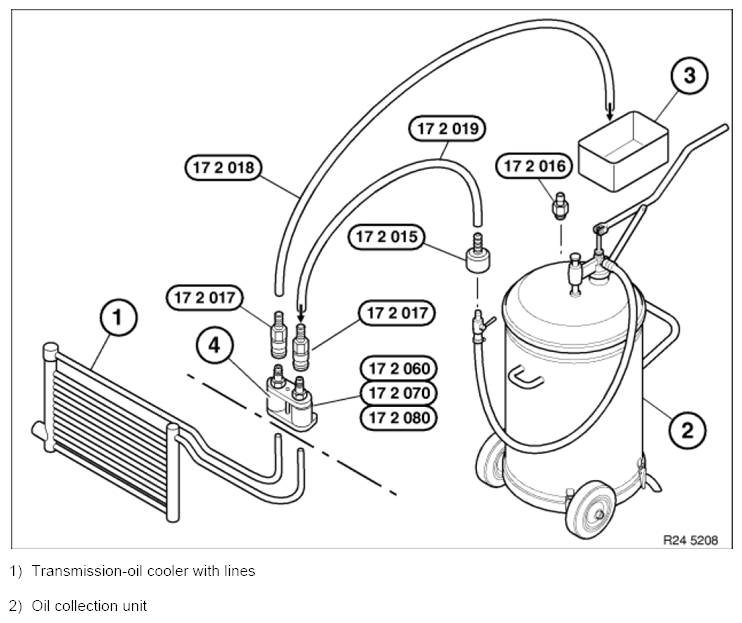

Arrangement of flushing apparatus for transmissions GA6HP19Z, GA6HP26Z, GA6HP32Z
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.
- Transmission-oil cooler with lines
- Oil collection unit
17 2 015 Connection for oil collection unit (2), manufacturer: Deutsche Tecalemit or
17 2 016 Connection for oil collection unit (2), manufacturer: Horn
17 2 017 Quick-release coupling (2 pieces)
17 2 019 Hose to oil collection unit (2)
- Oil drip tray
17 2 018 Hose to oil drip tray (3)
- Adapter with clamping bar
17 2 060 Adapter with clamping bar for aluminium lines and steel lines with aluminium connection (line diameter 12 mm) GA6HP19Z
17 2 070 Adapter with clamping bar (line diameter 15 mm) GA6HP26Z, GA6HP32Z, TCT for N54 engine
17 2 080 Adapter with clamping bar for fuel lines GA6HP26Z
