0495451 341280 Gauge MW

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Note: (Slide gauge) For measuring brake disk thickness.

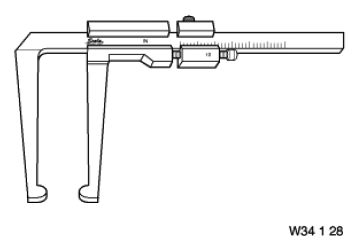

Fig 1: Identifying Gauge (341280)
G06876325Courtesy of BMW OF NORTH AMERICA, INC.
