11 51 000 Removing and Installing/Replacing Coolant Pump (N63O1)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Risk of Scalding!
Only Perform Repair Work After Engine Has Cooled Down.
Only Perform Repair Work After Engine Has Cooled Down.
Recycling
Catch and Dispose of Drained Coolant In A Suitable Collecting Vessel.
Observe Country-Specific Waste Disposal Regulations.
IMPORTANT:
If A Coolant Pump Which Has Already Been Operated Is Reused, It Must Be Filled Immediately After Being Removed with Coolant (Mixture Ratio 1:1/Water: Coolant).
Installation Note:
- All Screws, Nuts, Bolts and Hose Clamps Removed During The Repair Must Be Replaced.
- Retaining Elements On Chassis and Suspension and Steering Parts Must Be Replaced.
Necessary Preliminary Tasks:
- Drain COOLANT .
- Remove DRIVE BELT .

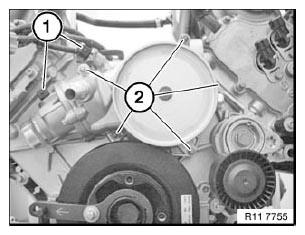

Unlock and Detach Plug Connections (1).
Unlock and Detach All Coolant Hoses On Coolant Pump.
Remove Coolant Feed Pipe.
Tightening torque: 11 51 4AZ .
Unfasten Screws (2).
Tightening torque 11 51 1AZ .
Lift Out Coolant Pump with A Swivelling Movement.
Installation Note:
Replace Seal.
Graphic Shows Engine N63.
NOTE:
Remove Coolant Thermostat From Faulty Coolant Pump.
Convert Coolant Thermostat To New Coolant Pump.
Tightening torque 11 53 1AZ .
Convert Coolant Thermostat To New Coolant Pump.
Tightening torque 11 53 1AZ .
Assemble Engine.
Vent COOLING SYSTEM and Check for Water Leaks.
