11 51 000 Removing and Installing/Replacing Coolant Pump (N63)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Risk of Scalding!
Only Perform This Work After Engine Has Cooled Down.

Recycling

Catch and Dispose of Drained Coolant In A Suitable Container.

Observe Country-Specific Waste Disposal Regulations.

IMPORTANT: If A Coolant Pump Which Has Already Been Operated Is Reused, It Must Be Filled Immediately After Being Removed with Coolant (Mixture Ratio 1:1/Water: Coolant).

Installation Note:

All Screws, Nuts, Bolts and Hose Clamps Removed During The Repair Must Be Replaced.
Retaining Elements On Chassis and Suspension and Steering Parts Must Be Replaced.

Necessary Preliminary Tasks:

Drain COOLANT .
Remove Intercooler EXPANSION TANK .
Remove Alternator DRIVE BELT .

IMPORTANT: Risk of Damage!
Coolant Emerges When The Coolant Hoses Are Detached From The Coolant Thermostat and Coolant Pump.
Cover Surrounding Components and Plug Connections with Suitable Apparatus

NOTE: for Purposes of Clarity, The Graphic Shows The Auxiliary Water Pump Removed.

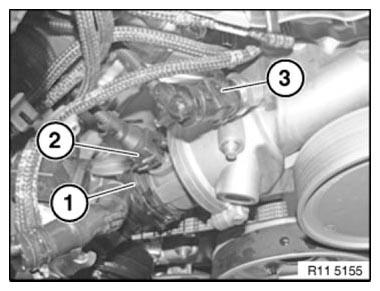

Fig 1: Identifying Connectors and Coolant Hose Fastener

Courtesy of BMW OF NORTH AMERICA, INC.

Remove Plug Connections (2 and 3).

Installation Note:

Plug Connections (2 and 3) Must Snap Audibly Into Place!

Unlock Snap Fastener On Coolant Hose (1).

Detach Coolant Hose (1) and Lay To One Side.

Release Screw (4).

Tightening torque 11 51 3AZ .

Detach Pipe (3) and Lay To One Side.

Installation Note:

Replace Sealing Ring.

Unlock Snap Fastener On Coolant Hose (5).

Detach Coolant Hose (5) and Lay To One Side.

Unfasten Screws (2).

Tightening torque 11 51 1AZ .

Fig 2: Identifying Pipe, Screws and Coolant Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Remove Coolant Pump (1) In Upward Direction with A Tilting Motion.

Installation Note:

Replace Gasket.

If Reusing The Coolant Pump:

If A Coolant Pump Is Reused, It Must Be Mechanically Rotated Once (Breakaway Torque At Pump Gears).

One Coolant Pump Rotation Will Be Sufficient.

If Replacing The Coolant Pump:

Release Screws On Coolant Thermostat.

Tightening torque 11 53 1AZ .

Remove Coolant Thermostat.

Installation Note:

Replace Sealing Ring.

Assemble Engine.

Top Up COOLANT .

VENTING INSTRUCTIONS Must Be Observed Without Fail.
