11 65 300 Adjusting Electrical Controller Drive (Wastegate Valve) (N55)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Basic Setting of The Wastegate Linkage Can Only Be Checked or Adjusted Using The Diagnosis.

IMPORTANT: The Adjusting Nuts (1 and 2) May Only Countered By Using Two Open-End Spanners.
Using Just One Open-End Spanner Risks Damaging The Electrical Actuator Drive.

Installation Note:

Shorten Adjustment Travel (-).

Increase Adjustment Travel (+).

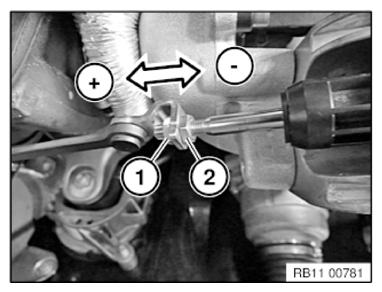

Fig 1: Adjusting Electrical Controller Drive (Wastegate Valve)

Courtesy of BMW OF NORTH AMERICA, INC.

To Ensure A Reliable Setting of The Adjustment Travel, Both Adjusting Nuts Must Be Marked with A Colored Mark.

One Full Turn of The Adjusting Nut Corresponds To An Adjustment Travel of 0.75 Mm.

Example 1:

Actual Value Measured By The Diagnostic Function: +0.75 Mm.

Required Correction: +0.75 Mm: 0.75 Mm = +1.0 Turns.

Adjust The Linkage Setting Correction By Turning Nut (1) Through 1.0 Turns In + Direction Before Resetting Nut (2) and Countering with 6 Nm.

Example 2:

Actual Value Measured By The Diagnostic Function: -1, 5 Mm.

Required Correction: -1.5 Mm: 0.75 Mm = - 2 Turns.

Adjust The Linkage Setting Correction By Turning Nut (2) Through 2 Turns In - Direction Before Resetting Nut (1) and Countering with 6 Nm.

Check Basic Setting Again Using Diagnosis.

Assemble Engine.
