11 65 180 Removing and Installing/Replacing Heat Shield At Top (N63O1)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Do Not Carry Out Test Drives Without Heat Shield (Risk of Fire!).

Necessary Preliminary Tasks:

Remove Engine Cover.
Remove Both Control Sensors.
Remove DME Control Units Holder.

Release Retaining Clip (1).

Detach Wire Ring (2) and Set Down Behind Oxygen Sensor.

Fig 1: Identifying Retaining Clip and Wire Ring

G06178812

Courtesy of BMW OF NORTH AMERICA, INC.

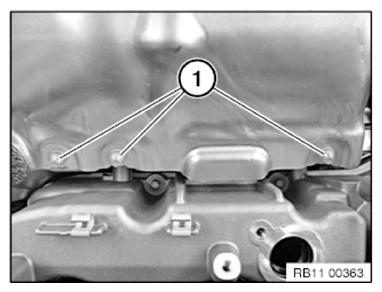

Release Bolts (1) Through 180°.

Tightening torque 11 65 3AZ .

Fig 2: Identifying Heat Shield Bolts

G09875108

Courtesy of BMW OF NORTH AMERICA, INC.

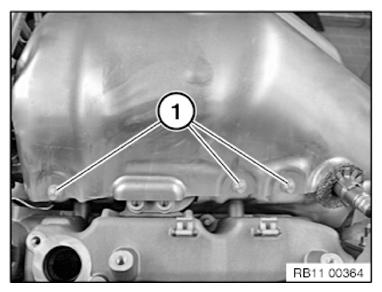

Release Bolts (1) Through 180°.

Tightening torque 11 65 3AZ .

Fig 3: Identifying Heat Shield Bolts

G09875109

Courtesy of BMW OF NORTH AMERICA, INC.

Lift Out Heat Shield.

Installation Note:

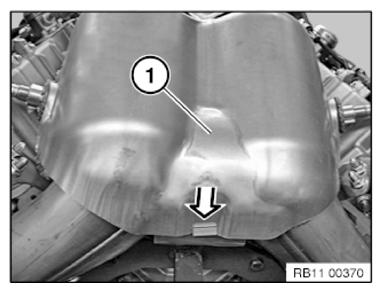

Clip In Heat Shield (1) Into Retaining Clip, See Arrow In Illustration.

Fig 4: Clipping Heat Shield Into Retaining Clip

G09875110

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble Engine.
