11 61 730 BMW Leakage Test for Intake System (N63O1)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

2 358 459 .
0 426 464
2 201 924
2 353 954

IMPORTANT: Excess Pressure and Vacuum Lines Can Be Recognized By The Size of Their Fasteners and Are Color-Coded Blue and Red Respectively.
Identification:

Pressure Line Blue
Vacuum Line Red

Excess Pressure and Vacuum Lines Must Not Be Mixed Up.
Mixing Up The Lines Will Result In Engine Damage.

Necessary Preliminary Tasks:

Remove INTAKE SILENCER HOUSING .
Prepare BMW Diagnosis System
Start Diagnosis Program
1. Power Train
2. Engine Electronics
3. Air Supply
4. Charging Pressure Control System or Perception of Lack of Power

Ordering Information:

applicable BMW applicable BMW Workshop Equipment - Start BMW
applicable BMW applicable BMW Workshop Equipment Catalogue
Measuring and Test Equipment
Service and Diagnosis
Order Number 81 29 0 426 464
Order Number 81 31 2 353 954

Check Intake System for Leaks

for A Precise Leakage Test, Both Clean Air Pipes Must Be Closed with the Special Tool 2 358 459 .

Fasten Clamp with 4 Nm.

Connect The Pressure Hose (1) with Special Tool 2 358 459 .

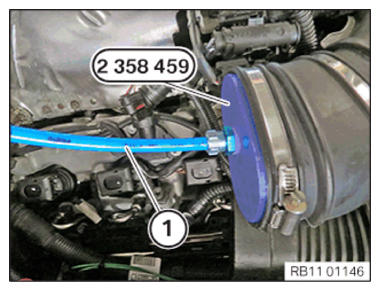

Fig 1: Connecting Pressure Hose with Special Tool 2 358 459

Courtesy of BMW OF NORTH AMERICA, INC.

Insert The Blue Over Overpressure Lines Into The Pneumatic Coupling (1) Up To The Limit Position.

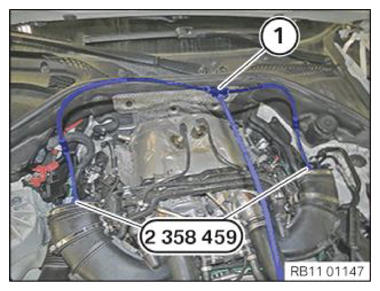

Fig 2: Identifying Overpressure Lines and Pneumatic Coupling

Courtesy of BMW OF NORTH AMERICA, INC.

Insert The Blue Overpressure Lines On The Diagnosis Auxiliary Device 0 426 464 On The Connector (1).

Connect The IMIB (3) with the Connector (2) of The Diagnosis Auxiliary Device By Means of The Hose 2 201 924.

Fig 3: Identifying Overpressure Lines, Diagnosis Auxiliary Device, Connector, and IMIB

Courtesy of BMW OF NORTH AMERICA, INC.

Installation Note:

Follow Diagnosis Instruction.

Leak Detection with BMW Smoke Tester

Disconnect The Overpressure Line (2) On The Diagnosis Auxiliary Device.

Connect Pressure Line (1) From The BMW Smoke Tester 2 353 954 with the Overpressure Line (2).

Fig 4: Connecting Pressure Line From BMW Smoke Tester 2 353 954 with Overpressure Line

Courtesy of BMW OF NORTH AMERICA, INC.

Put The BMW Smoke Tester 2 353 954 Into Operation According To The Operating Instructions.

Fig 5: Identifying BMW Smoke Tester (2 353 954)

Courtesy of BMW OF NORTH AMERICA, INC.

Observe BMW Diagnosis Instructions.

Leaks On The Air Intake Duct Are Detected By Escaping Smoke.
