11 66 000 Removing and Installing/Replacing Vacuum Pump (N63)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Installation Note:
Due To The Risk of Damage To The Engine Gaskets/Seals and The Lack of Brake Boosting, Make Sure Before Starting The Engine That All The Vacuum Lines Are Connected.

Vacuum Pump Is Fitted On Cylinder Head 1 To 4 At Rear On Intake Camshaft.

Necessary Preliminary Tasks:

Press Brake Pedal Several Times In Order To Reduce Vacuum Pressure In Brake Booster.
Remove Right CATALYTIC CONVERTER .
Remove Right Heat Shield.
Detach Vacuum Line From Vacuum Pump.

Release Screws (1).

Remove Heat Shield (2).

Remove Vacuum Hose.

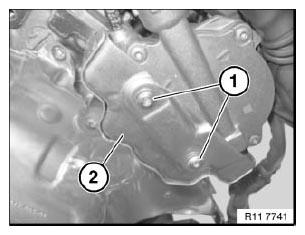

Fig 1: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release Screws (1).

NOTE: Bolts (1) Are Secured Against Falling Out.

Release Screw (2).

Remove Vacuum Pump (3).

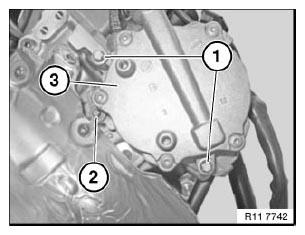

Fig 2: Identifying Vacuum Pump, Heat Shield, and Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Drive (1) Must Be Rotated Into Correct Position Prior To Installation.

Installation Note:

Replace Sealing Ring (2) and Coat with Grease To Facilitate Fitting.

Fig 3: Identifying Drive and Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation Note:

Align Vacuum Pump Drive To Groove (1) of Intake Camshaft.

Vacuum Pump Can Best Be Installed When Groove (1) Is Vertically Aligned.

Fig 4: Aligning Vacuum Pump Drive To Groove of Intake Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Check Function of DME.

Check Vacuum Pump for Leaks and Correct Operation.
