11 40 000 Checking Engine Oil Pressure (N55)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

11 6 410 .
11 9 240 .
11 9 250 .
13 6 051 .
2 212 823
11 4 310

IMPORTANT: The Regulated Oil Pump Can Only Be Checked and Measured with the Diagnosis System.
Vehicles with A Regulated Oil Pump Have A HYDRAULIC VALVE Fitted.
Diagnosis Path:

DME Digital Motor Electronics
Complete Vehicle
Power Train
Engine Electronics
Engine Oil
Oil-Pressure Control

Special Tool 11 9 250 Must Be Converted for N55

Necessary Preliminary Tasks:

Connect BMW Diagnosis System To Vehicle.
Observe Diagnosis Instructions.
Protect Drive Belt Against Dirt
Have A Cleaning Cloth Ready To Catch Escaping Oil

Secure Special Tool 11 9 250 At Hexagon Head In A Vice.

Release Insert (2) Using A Slotted Screwdriver (1) In Direction of Arrow.

Fig 1: Securing Special Tool In Vice and Releasing Insert Using Slotted Screwdriver

G05777440

Courtesy of BMW OF NORTH AMERICA, INC.

Release Screw Piece (1) On Special Tool 11 6 410 .

Fig 2: Releasing Screw Piece On Special Tool (11 6 410)

G05777441

Courtesy of BMW OF NORTH AMERICA, INC.

Install Special Tool 11 6 410 In Special Tool 11 9 250 .

Insert Central Bolt with A Slotted Screwdriver (1) Hand-Tight.

Fig 3: Inserting Central Bolt with Slotted Screwdriver

G05777442

Courtesy of BMW OF NORTH AMERICA, INC.

Insert Screw Piece (1) Hand-Tight In Direction of Arrow On Special Tool 11 6 410 .

Fig 4: Inserting Screw Piece On Special Tool 11 6 410

G05777443

Courtesy of BMW OF NORTH AMERICA, INC.

Release Oil Filter Cover with Special Tool 11 9 240 .

Tightening torque: 11 42 1 AZ .

Fig 5: Releasing Oil Filter Cover Using Special Tool (11 9 240)

G04725319

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully Detach Filter Element.

Installation Note:

Check All O-Rings for Damage, Replace If Necessary.

Fig 6: Identifying Oil Filter Element and Sealing Rings

G04725320

Courtesy of BMW OF NORTH AMERICA, INC.

Install Filter Element (1) In Special Tool 11 9 250 .

Installation Note:

Coat O-Ring with Engine Oil.

Fig 7: Installing Filter Element In Special Tool 11 9 250

G05777446

Courtesy of BMW OF NORTH AMERICA, INC.

Order Number for Special Tool: Bolt 2 212 823 with 11 4 310.

Screw The Pressure Sensor (1) Hand Tight.

Apply Light Coating of Oil To Sealing Ring At Pressure Sensor (1) 100 Bar.

Fig 8: Identifying Special Tools and Pressure Sensor

G09845987

Courtesy of BMW OF NORTH AMERICA, INC.

Measure The Engine Oil Pressure with Diagnosis System.

Order Number for Special Tool: Screw 2 212 823 To Oil Filter Housing.

Special Tool 11 4 310 On Special Tool, Order Number: 2 212 823.

Screw In Pressure Sensor (1) 100 Bar At Special Tool 11 4 310 (Finger-Tight).

Connect Cable (2) of IMIB (Integrated Measurement Interface Box) To Pressure Sensor (1) 100 Bar.

Graphic Shows Engine N20.

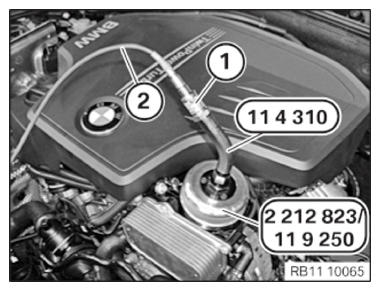

Fig 9: Identifying Special Tools, Pressure Sensor, and IMIB Cable

G09845988

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble Engine.
