11 74 509 Replacing Both Pressure Converters for Turbocharger (N63O1)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove Right INTERCOOLER .

Pressure Converter, Cylinders 1-4

Disconnect Plug Connection (1) On Pressure Converter.

Pressure Converter, Cylinders 5-8

Disconnect Plug Connection (2) On Pressure Converter.

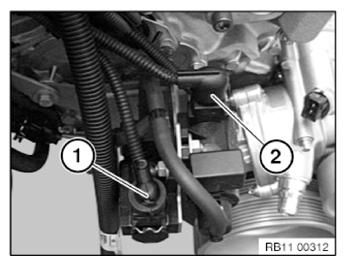

Fig 1: Identifying Pressure Converters and Connectors

Courtesy of BMW OF NORTH AMERICA, INC.

Pressure Converter, Cylinders 1-4

Disconnect Vacuum Hose At Connection (VAC = Vacuum Reservoir).

Disconnect Vacuum Hose At Connection (Out = Turbocharger Vacuum Unit).

Unscrew Nuts (1).

Tightening torque 11 65 9AZ .

Remove Pressure Converter (EDPDW).

Installation Note:

Cylinder 1-4 Is Equipped with A Fabric Hose (Out).

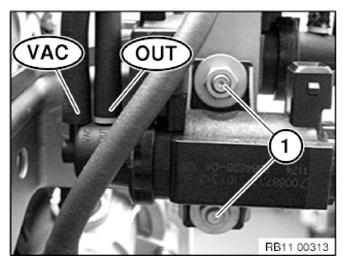

Fig 2: Identifying VAC and Out Hose Connections and Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Pressure Converter, Cylinders 5-8

Disconnect Vacuum Hose At Connection (VAC = Vacuum Reservoir).

Disconnect Vacuum Hose At Connection (Out = Turbocharger Vacuum Unit).

Unscrew Nuts (1).

Tightening torque 11 65 9AZ .

Remove Pressure Converter (EDPDW).

Installation Note:

Cylinder 5-8 Is Equipped with A Molded Hose (Out).

Fig 3: Identifying VAC and Out Hose Connections and Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

All Plug Connections Must Audibly Snap Into Place.

Check Activation Via Diagnosis System.
