11 37 008 Removing and Installing/Replacing Right Eccentric Shaft (N63O1)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

11 4 480 .

Cylinder Bank 1

(Cylinder Bank 1 To 4)

Necessary Preliminary Tasks:

Remove ENGINE .
Remove SERVOMOTOR for Eccentric Shaft.
Remove Right INTERMEDIATE LEVER .
Remove Right INTAKE CAMSHAFT .

IMPORTANT: All Intake Side Bearing Supports Are Marked and May Only Be Reinstalled At The Same Position.

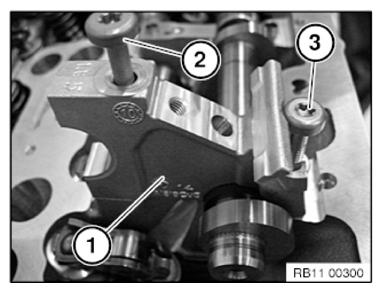

Unfasten Screws (2 and 3).

Remove Intake Side Bearing Support (1) and Place On Special Tool 11 4 480 In An Orderly Fashion.

Fig 1: Identifying Bearing Support and Screws

Courtesy of BMW OF NORTH AMERICA, INC.

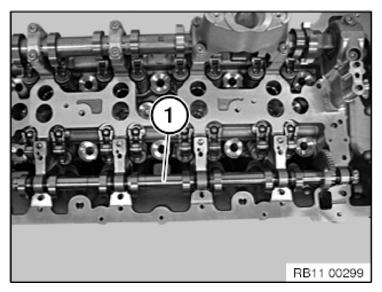

Lift Off Eccentric Shaft (1).

Fig 2: Identifying Eccentric Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of Mixing Up The Eccentric Shafts.
Identification: 14 = Cylinders 1 To 4.
Identification: 58 = Cylinders 5 To 8.

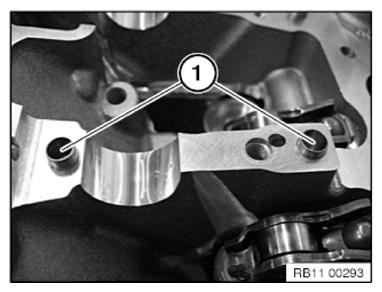

Check Fitting Bushes (1) for Damage and Replace If Applicable.

Fig 3: Identifying Bushes

Courtesy of BMW OF NORTH AMERICA, INC.

Insert Intermediate Shaft 14 for Cylinders 1-4.

Place Bearing Support (1) In Position.

Insert Screws (2 and 3).

Tightening torque: 11 37 1AZ .

Fig 4: Identifying Bearing Support and Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble Engine.
