11 33 062 Removing and Installing/Replacing All Hydraulic Valve Clearance Compensating Elements (HVC) (N63O1)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools Required:
- 11 4 480 .
Necessary Preliminary Tasks:
- Remove All Rocker Arms. See LEFT SIDE and RIGHT SIDE .

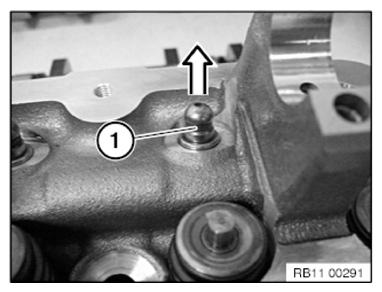

Remove Hydraulic Valve Clearance Compensating Elements (1) In Direction of Arrow.
If The Valve Clearance Compensating Elements Are To Be Reused, Set Them Down In An Orderly Fashion On Special Tool 11 4 480 .
Assemble Engine.
