11 33 052 Removing and Installing/Replacing All Rocker Arms On Left Side (N63)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools Required:
- 11 4 480
.
(Cylinder Bank 5 To 8)
Necessary Preliminary Tasks:
- Remove LEFT INLET CAMSHAFT .
- Remove Left EXHAUST CAMSHAFT .
IMPORTANT:

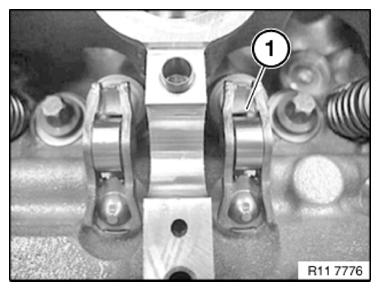

Used Rocker Arms (1) May Only Be Reused In The Same Position.
Tolerance Classes Are Not Required.
Tolerance Classes Are Not Required.
Remove Rocker Arm (1) and Set Down In Neat Order In Special Tool 11 4 480 .
Install Rocker Arm (1).
Align All Rocker Arms (1) Straight.
Assemble Engine.
