11 22 513 Replacing Roller Bearing for Dual-Mass Flywheel (N63)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools Required:
- 21 2 051
- 21 2 052
NOTE:
FLYWHEEL
Removed!

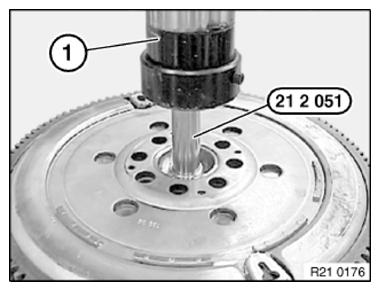

Using Hydraulic Press (1) and Special Tool 21 2 051, Press Roller Bearing Out of Dual-Mass Flywheel Downwards On Engine Side.
IMPORTANT:
Risk of Damage:
Roller Bearing Must Not Be Driven Out.
Roller Bearing Must Not Be Driven Out.
Fig 1: Pressing Roller Bearing Out of Dual-Mass Flywheel Using Hydraulic Press and Special Tool 21 2 051

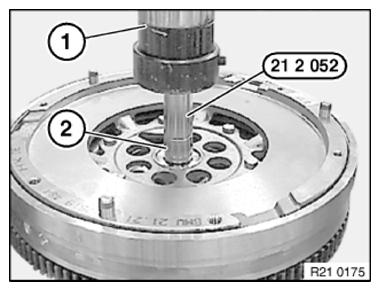

Push Roller Bearing (2) Onto Special Tool 21 2 052.
Using Hydraulic Press (1), Press Roller Bearing Into Dual-Mass Flywheel As Far As It Will Go On Clutch Side.
IMPORTANT:
Risk of Damage:
Observe Press-In Instruction:
Observe Press-In Instruction:
- Roller Bearing Must Not Be Driven In.
- Roller Bearing Mounting Force/Travel Monitored:
Min. 2000 N 1 Mm Before End of Pressing In.
Max. 15, 000 N During Entire Press-In Procedure.
