11 22 510 Removing and Installing/Replacing Flywheel (Transmission Removed - N63O1)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

11 9 260 .

Necessary Preliminary Tasks:

Remove Automatic Transmission
Remove Manual Transmission
Remove Clutch

Manual Transmission

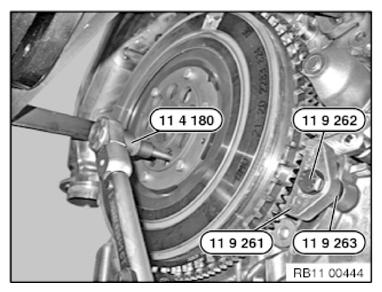

Secure Flywheel (1) with Special Tool 11 9 260 .

Graphic Shows Engine S63T0.

Fig 1: Securing Flywheel Using Special Tool 11 9 260

Courtesy of BMW OF NORTH AMERICA, INC.

Automatic Transmission

Release Flywheel Screws In Area (1).

Remove Flywheel (2).

Installation Note:

Clean Thread of Flywheel Bolts In Crankshaft.

Flywheel (2) Is Secured with An Alignment Pin.

Fit Flywheel (2).

Fit New Flywheel Screws.

Tightening torque 11 22 1AZ .

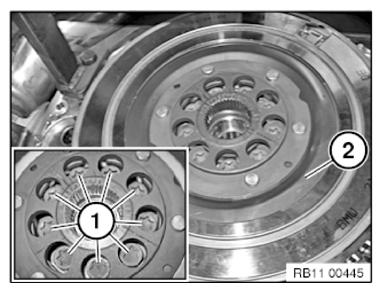

Fig 2: Identifying Flywheel and Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Manual Transmission

Release Flywheel Screws In Area (1).

Remove Flywheel (2).

Installation Note:

Clean Thread of Flywheel Bolts In Crankshaft.

Flywheel (2) Is Secured with An Alignment Pin.

Fit Flywheel (2).

Fit New Flywheel Screws.

Tightening torque 11 22 1AZ .

Reassemble The Vehicle.

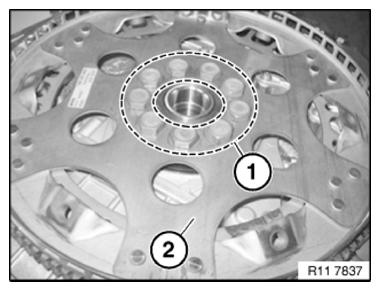

Fig 3: Removing/Installing Flywheel

Courtesy of BMW OF NORTH AMERICA, INC.
