11 22 510 Removing and Installing/Replacing Flywheel (Transmission Removed - N63)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools Required:
- 11 9 260 .

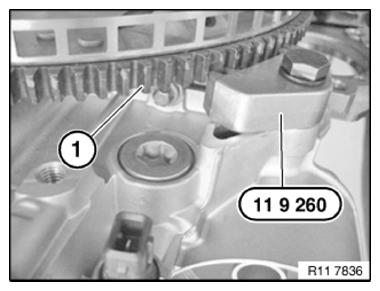

Secure Flywheel (1) with Special Tool 11 9 260 .
Automatic Transmission

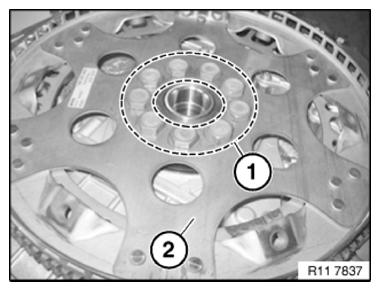

Release Flywheel Screws In Area (1).
Remove Flywheel (2).
Installation Note:
Clean Threads On Flywheel Screws In Crankshaft.
Flywheel (2) Is Secured with An Alignment Pin.
Fit Flywheel (2).
Fit New Flywheel Bolts.
Tightening torque 11 22 1AZ .
Manual Gearbox
Release Flywheel Screws In Area (1).
Remove Flywheel (2).
Installation Note:
Clean Threads On Flywheel Screws In Crankshaft.
Flywheel (2) Is Secured with An Alignment Pin.
Fit Flywheel (2).
Fit New Flywheel Bolts.
Tightening torque 11 22 2AZ .
