11 31 573 Adjusting Camshaft Timing On Left Side (N63O1)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

(Cylinder Bank 5 To 8)

Necessary Preliminary Tasks:

Remove LEFT GEAR CASE COVER .
CHECKING CAMSHAFT TIMING ON LEFT SIDE .

Get Set of Special Tools 2 249 117 Ready for Securing Camshafts.

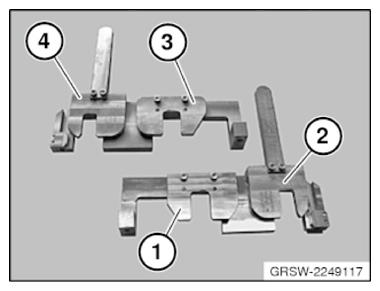

Fig 1: Identifying Set of Special Tools 2 249 117 for Securing Camshafts

Courtesy of BMW OF NORTH AMERICA, INC.

Position Special Tool 2 249 144 On Intake Camshaft.

Position Exhaust Camshaft with Special Tool 2 249 159 and Attach To Special Tool 2 249 144 .

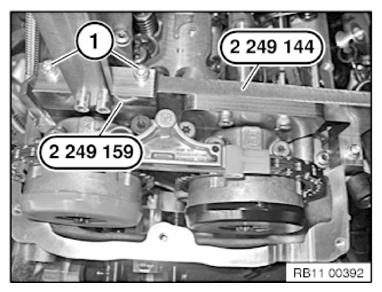

Fig 2: Positioning Special Tools On Camshafts

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Mount Special Tool 2 249 117 .

Release Central Bolts (1 and 2) of Intake Adjuster and Exhaust Camshaft Adjuster.

Installation Note:

Replace Central Bolts After Releasing.

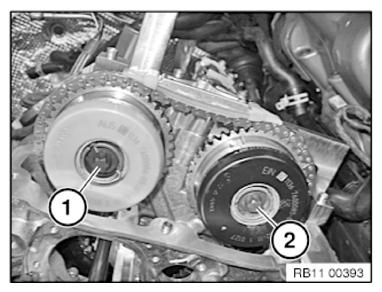

Fig 3: Identifying Central Bolts of Intake and Exhaust Camshaft Adjuster

Courtesy of BMW OF NORTH AMERICA, INC.

Installation Note:

Coat Contact Surface of New Central Bolt (1) with 4.4 Copper Paste.

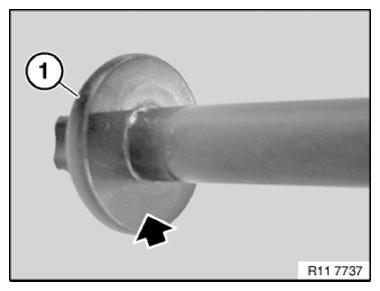

Fig 4: Checking Central Bolt Head To See If Required Grease Is Present

Courtesy of BMW OF NORTH AMERICA, INC.

Insert Central Bolt (1 and 2).

IMPORTANT: Loosen The Central Bolts (1 and 2) By Maximum 40°.

Fig 5: Identifying Central Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Crank Engine Back At Central Bolt Through 8°.

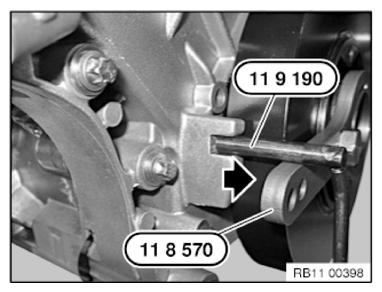

Position Engine with Special Tool 11 9 190 In Front of Special Tool 11 8 570 As Shown In Graphic.

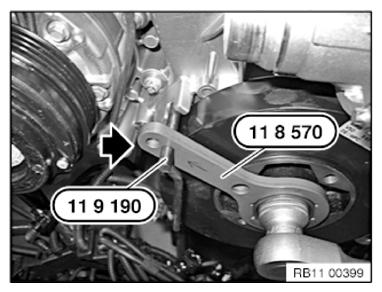

Fig 6: Positioning Engine Using Special Tool 11 9 190 In Front of Special Tool 11 8 570

Courtesy of BMW OF NORTH AMERICA, INC.

Installation Note:

Tighten The Central Bolt (1) Beginning with the Intake Camshaft.

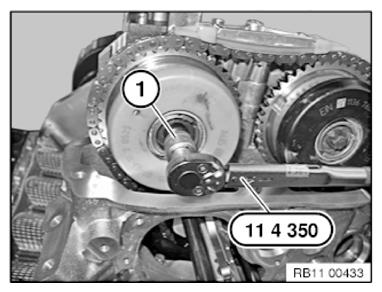

Insert Central Bolt (1) of Intake Camshaft with Special Tool 11 4 350 .

Joining Torque 5 Nm .

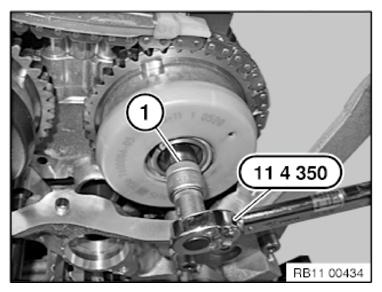

Fig 7: Inserting Central Bolt of Intake Camshaft Using Special Tool 11 4 350

Courtesy of BMW OF NORTH AMERICA, INC.

Insert Central Bolt (1) of Exhaust Camshaft with Special Tool 11 4 350 .

Joining Torque 5 Nm .

Fig 8: Inserting Central Bolt of Exhaust Camshaft Using Special Tool 11 4 350

Courtesy of BMW OF NORTH AMERICA, INC.

Remove Special Tool 11 9 190 .

Fig 9: Positioning Engine Using Special Tool 11 9 190 In Front of Special Tool 11 8 570

Courtesy of BMW OF NORTH AMERICA, INC.

Turn The Engine At The Central Bolt Further Until The Special Tool 11 9 190 Can Be Positioned In The Gear Case Cover.

The Engine Is Now In The 150° Crankshaft Position Before The TDC Firing Position of Cylinder 1.

Fig 10: Turning Engine At Central Bolt and Positioning Special Tool 11 9 190 In Gear Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation Note:

Tighten The Central Bolt (1) Beginning with the Intake Camshaft.

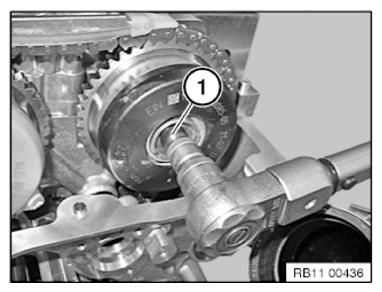

Insert Central Bolt (1) of Intake Camshaft with Torque.

Tightening torque of 30 Nm

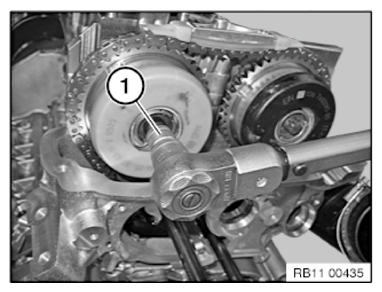

Fig 11: Inserting Central Bolt of Intake Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Insert Central Bolt (1) of Exhaust Camshaft with Torque.

Tightening torque of 30 Nm

Fig 12: Inserting Central Bolt of Exhaust Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Insert Central Bolt (1) of Intake Camshaft with Special Tool 00 9 120 .

TORSION ANGLE ADJUSTMENT90° .

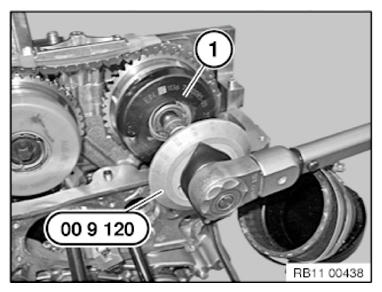

Fig 13: Inserting Central Bolt of Intake Camshaft Using Special Tool 00 9 120

Courtesy of BMW OF NORTH AMERICA, INC.

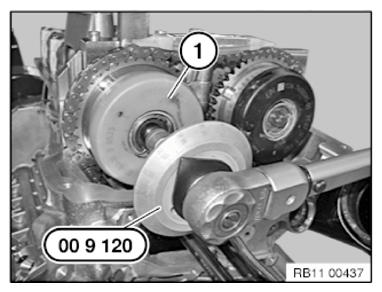

Insert Central Bolt (1) of Exhaust Camshaft with Special Tool 00 9 120 .

TORSION ANGLE ADJUSTMENT90°

Checking The Timing: Remove Special Tool 2 249 117 .

Fig 14: Inserting Central Bolt of Exhaust Camshaft Using Special Tool 00 9 120

Courtesy of BMW OF NORTH AMERICA, INC.

Remove Special Tools 11 9 190 and 11 8 570 .

Crank Engine At Central Bolt Twice In Direction of Engine Rotation Until Engine Returns To 150° Before Cylinder No. 1 Firing TDC Position.

Secure Vibration Damper with Special Tools 11 8 570 and 11 9 190 In The 150° TDC Firing Position, Cylinder 1 .

Fig 15: Turning Engine At Central Bolt and Positioning Special Tool 11 9 190 In Gear Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

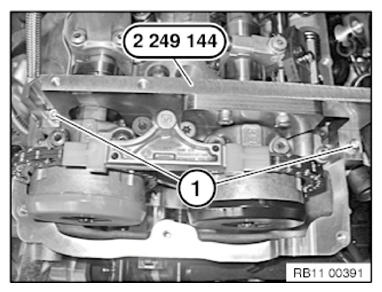

Fit Special Tool 2 249 144 On Intake Camshaft and Check Timing Adjustment.

NOTE: Timing Is Correctly Adjusted When Special Tool 2 249 144 Rests Without A Gap On Cylinder Head.

Fig 16: Fitting Special Tool 2 249 144 On Intake Camshaft and Checking Timing Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

Place Special Tool 2 249 159 On The Exhaust Camshaft and Check Timing Adjustment.

NOTE: Timing Is Correctly Adjusted When Special Tool 2 249 159 Rests Without A Gap On Special Tool 2 249 144 .

Fig 17: Positioning Special Tools On Camshafts

Courtesy of BMW OF NORTH AMERICA, INC.

Remove All Special Tools.

Assemble Engine.
