11 00 Mounting Engine On Assembly Stand (N55)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools Required:
IMPORTANT:
Aluminum Screws/Bolts Must Be Replaced Each Time They Are Released
.
Aluminum Screws/Bolts Are Permitted with and Without Color Coding (Blue).
for Reliable Identification:
Aluminum Screws/Bolts Are Not Magnetic .
Joining Torque and Angle of Rotation Must Be Observed Without Fail (Risk of Damage) .
Aluminum Screws/Bolts Are Permitted with and Without Color Coding (Blue).
for Reliable Identification:
Aluminum Screws/Bolts Are Not Magnetic .
Joining Torque and Angle of Rotation Must Be Observed Without Fail (Risk of Damage) .
Necessary Preliminary Tasks:
- Remove ENGINE .

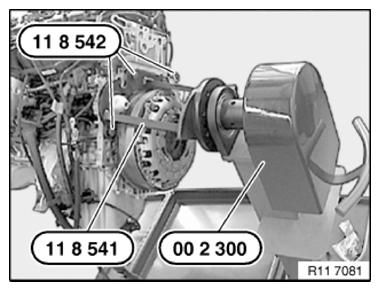

Use Special Tool 11 8 541 To Mount Engine On Special Tool 00 2 300 .
Mount Engine or Engine Block with Special Tool 11 8 542 On 11 8 541 .
