11 00 039 Checking Compression of All Cylinders (N55)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

IMPORTANT: High Voltage - Danger To Life!
Interrupt Power Supply To Ignition Coils.
Read and Comply with Notes On Compression Test.

Necessary Preliminary Tasks:

Remove SPARK PLUGS .

Unscrew Tip (1) From Special Tool 11 0 222 .

IMPORTANT: Then Check The Schrader Valve That Is Now Visible for Secure Seating.

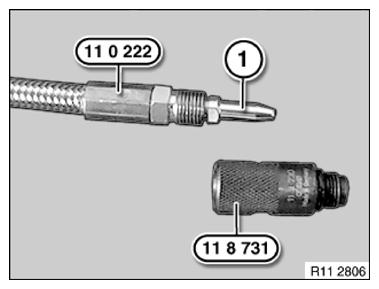

Fig 1: Identifying Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Prepare Special Tool 11 0 222 In Conjunction with 11 8 732 and 11 8 731 .

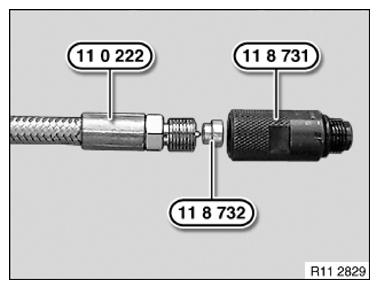

Fig 2: Identifying Special Tools 11 0 222, 11 8 731, 11 8 732

Courtesy of BMW OF NORTH AMERICA, INC.

Screw Special Tool 11 0 222 Into Special Tool 11 8 731 To 10 Nm.

IMPORTANT: Oil Thread On Special Tool 11 8 731 .

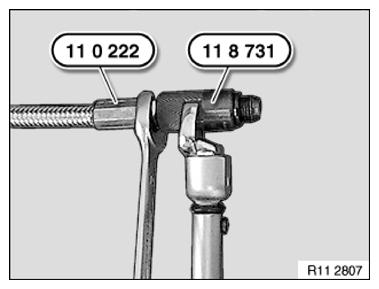

Fig 3: Attaching Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Screw Special Tool 11 0 222 By Hand Into Spark Plug Thread and Connect Special Tool 11 0 224 .

Depress Accelerator Pedal and Actuate Starter Until Compression Pressure Stops Rising.

NOMINAL VALUES , Compression Pressure

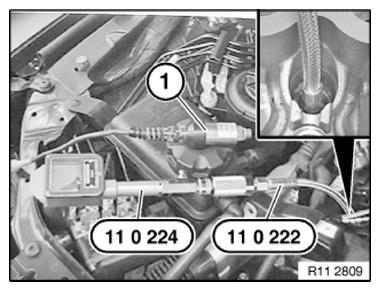

Fig 4: Screwing Special Tool 11 0 222 Into Spark Plug Thread and Connecting Special Tool 11 0 224
Courtesy of BMW OF NORTH AMERICA, INC.

Assemble Engine

Delete Fault Memory.
