11 14 250 Removing and Installing/Sealing Rear Coolant End Cover (N63)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

11 4 470 .

WARNING: Risk of Scalding!
Only Perform This Work After Engine Has Cooled Down.

Recycling

Catch and Dispose of Drained Coolant In A Suitable Collecting Vessel.

Observe Country-Specific Waste Disposal Regulations.

Necessary Preliminary Tasks:

Remove FLYWHEEL .
Drain COOLANT .

Release All Screws In Area (1).

Tightening torque 11 14 5AZ .

Remove End Cover.

NOTE: Clean Sealing Surfaces with Special Tool 11 4 470 .

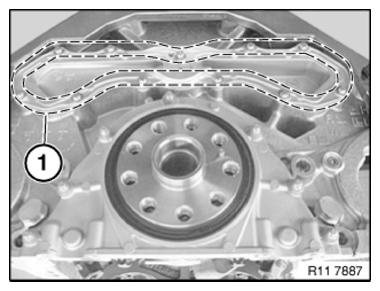

Fig 1: Locating Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation Note:

Replace Profile Seal (1).

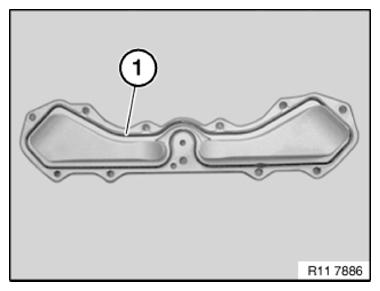

Fig 2: Identifying Profile Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble Engine.
