11 15 015 Remove/Install/Replace Engine Ventilation Line

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove BOTH INTAKE SILENCER HOUSINGS .
Release The CONNECTION LINE ON THE VENTILATION LINE .

Unclip The Connector (1) for The Oxygen Sensors From The Holder.

Unlock and Disconnect The Connector (1) for The Oxygen Sensors.

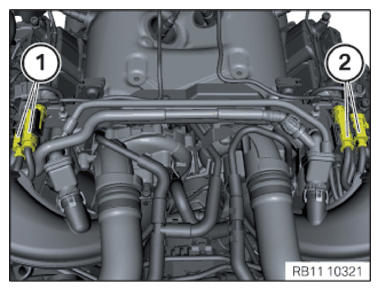

Fig 1: Identifying Oxygen Sensor Connectors

G09873684

Courtesy of BMW OF NORTH AMERICA, INC.

Release Screw (1).

Release Both Screw Bosses (2).

Feed Out Carrier Plate (3).

Unclip The Cable for The Oxygen Sensors At The Marked Area.

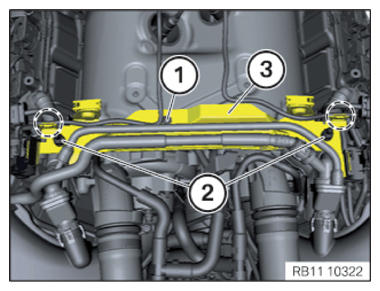

Fig 2: Identifying Carrier Plate, Bosses and Screw

G09873685

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Both Ventilation Lines (1) and The Purge Air Line (2) Form A Single Unit and Can Only Be Removed or Replaced Together.

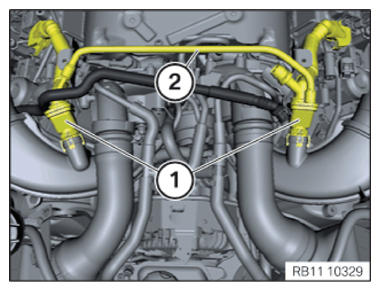

Fig 3: Identifying Ventilation Lines and Purge Air Line

G09873686

Courtesy of BMW OF NORTH AMERICA, INC.

Use A Screwdriver (3) To Unlock The Latch Mechanisms (2) One After The Other.

Remove The Ventilation Line (1) At The Same Time.

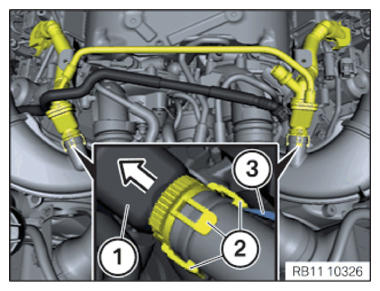

Fig 4: Unlocking Latches with Screwdriver for Removal of Ventilation Line

G09873687

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The Operation Describes The Left Side. The Right Side Is Identical To The Left Side.

Release Screws (1).

Tightening torque 11 12 10AZ .

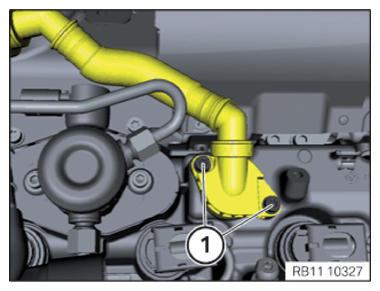

Fig 5: Identifying Screws

G09873688

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The Operation Describes The Left Side. The Right Side Is Identical To The Left Side.

IMPORTANT: This Is A Bayonet Fitting!

Turn The Ventilation Line (1) In Direction of Arrow and Afterwards Pull It Off From The Cylinder Head Cover.

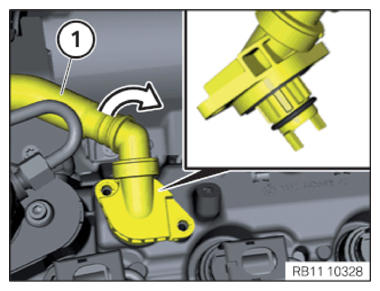

Fig 6: Turning Ventilation Line

G09873689

Courtesy of BMW OF NORTH AMERICA, INC.
