11 33 062 Removing and installing/replacing all hydraulic valve clearance compensating elements (HVC) (S63)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 4 480 .

Necessary preliminary tasks:

Remove all rocker arms. See ROCKER ARMS, LEFT and ROCKER ARMS, RIGHT .

Remove hydraulic valve clearance compensating elements (1) in direction of arrow.

If the valve clearance compensating elements are to be reused, set them down in neat order in special tool 11 4 480 .

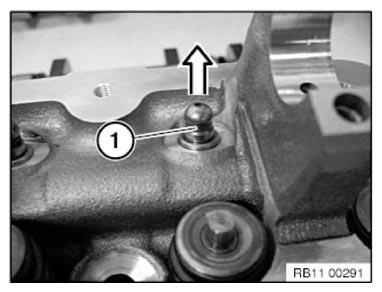

Fig 1: Removing Compensating Elements

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
