11 23 010 Removing and installing/replacing vibration damper (N55)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Remove UNDERBODY PROTECTION .
Remove DRIVE BELT .

NOTE: Gearbox removed:

Block crankshaft with special tool 11 9 260 .

NOTE: Picture of flywheel removal.

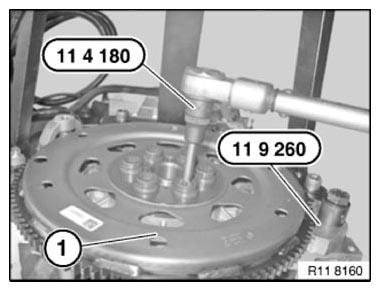

Fig 1: Identifying Flywheel And Special Tools

G09920507

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Gearbox installed with manual gearbox:

Block crankshaft with special tool 11 8 180 .

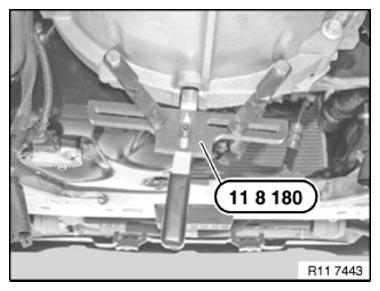

Fig 2: Blocking Crankshaft Using Special Tool (11 8 180)

G09920508

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Gearbox installed with automatic transmission:

Block crankshaft with special tool 11 8 660 .

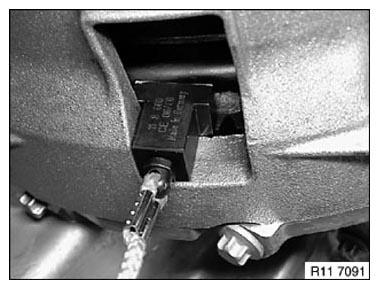

Fig 3: Blocking Crankshaft Using Special Tool (11 8 660)

G09920509

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not release central bolt.
If the central bolt is accidentally loosened, the timing must be readjusted.

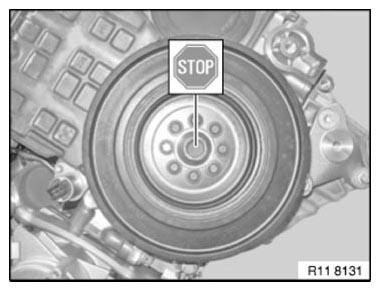

Fig 4: Identifying Central Bolt

G09920510

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1 to 8).

Remove vibration damper (1).

Screws on vibration damper

Tightening torque 11 23 1AZ .

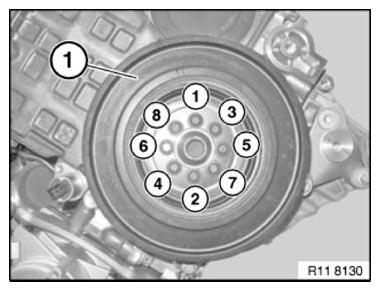

Fig 5: Vibration Damper Bolts Tightening/Loosening Sequence (N55)

G09920511

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
