11 22 510 Removing and installing/replacing flywheel (transmission removed - N63O1)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 9 260 .

Necessary preliminary tasks:

Remove transmission. See MANUAL TRANSMISSION or AUTOMATIC TRANSMISSION . For AWD vehicles, see applicable removal procedure for AUTOMATIC TRANSMISSION .
Remove CLUTCH .

Manual transmission:

Secure flywheel (1) with special tool 11 9 260 .

Graphic shows S63T0.

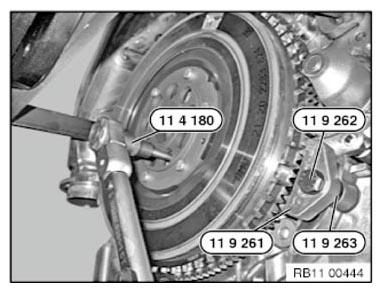

Fig 1: Identifying Flywheel

Courtesy of BMW OF NORTH AMERICA, INC.

Automatic transmission:

Release flywheel screws in area (1).

Remove flywheel (2).

Installation note:

Clean thread of flywheel bolts in crankshaft.

Flywheel (2) is secured with an alignment pin.

Fit flywheel (2).

Fit new flywheel screws .

Tightening torque 11 22 1AZ .

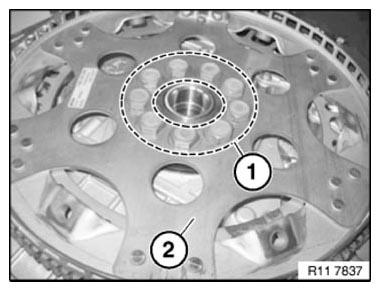

Fig 2: Locating Flywheel Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Manual transmission:

Release flywheel screws in area (1).

Remove flywheel (2).

Installation note:

Clean thread of flywheel bolts in crankshaft.

Flywheel (2) is secured with an alignment pin.

Fit flywheel (2).

Fit new flywheel screws .

Tightening torque 11 22 1AZ .

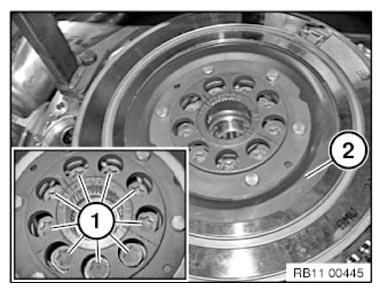

Fig 3: Removing/Installing Flywheel

Courtesy of BMW OF NORTH AMERICA, INC.

Reassemble the vehicle.
