11 22 000 Removing and installing/replacing flywheel (N63)
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 11 9 260 .
Necessary preliminary tasks:
- Remove transmission. See MANUAL TRANSMISSION or AUTOMATIC TRANSMISSION .
- Remove CLUTCH .

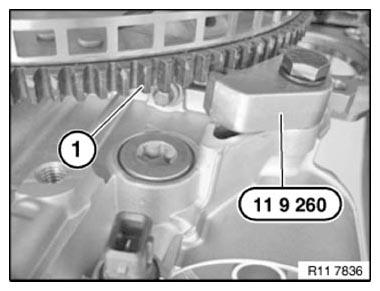

Secure flywheel (1) with special tool 11 9 260 .
Automatic transmission:

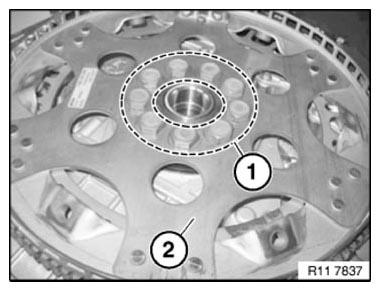

Release flywheel screws in area (1).
Remove flywheel (2).
Installation note:
Clean threads on flywheel screws in crankshaft.
Flywheel (2) is secured with an alignment pin.
Fit flywheel (2).
Fit new flywheel bolts .
Tightening torque 11 22 1AZ .
Manual gearbox:
Release flywheel screws in area (1).
Remove flywheel (2).
Installation note:
Clean threads on flywheel screws in crankshaft.
Flywheel (2) is secured with an alignment pin.
Fit flywheel (2).
Fit new flywheel bolts .
Tightening torque 11 22 2AZ .
