11 12 719 Surface grinding cylinder head lower face (S63)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove cylinder head. See LEFT CYLINDER HEAD or RIGHT CYLINDER HEAD .

Cylinder head disassembled:

Check evenness of cylinder head lower face with a standard straightedge (1).

NOTE: Maximum deviation from flatness: longitudinal 0.10 mm.

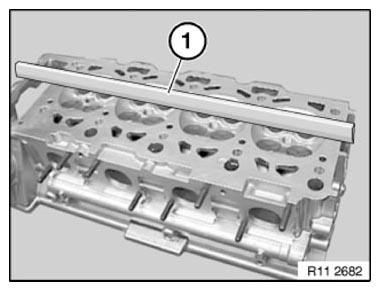

Fig 1: Checking Evenness Of Cylinder Head Lower Face (Longitudinal)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Maximum deviation from flatness: transversal 0.05 mm.

Machining limit

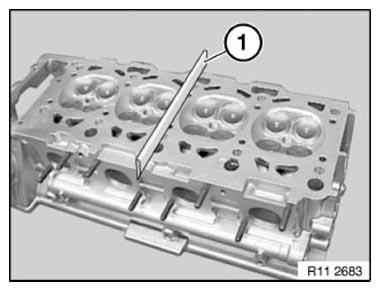

Fig 2: Checking Evenness Of Cylinder Head Lower Face (Transverse)
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: A cylinder head gasket (+REP) 0.3 mm thicker than usual can be obtained for machined (resurfaced) cylinder heads.

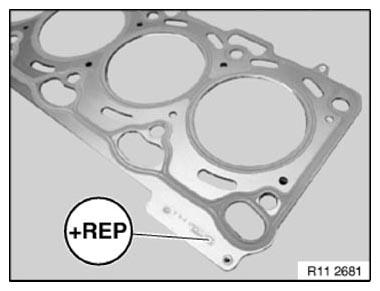

Fig 3: Identifying Cylinder Head Gasket (+REP)

Courtesy of BMW OF NORTH AMERICA, INC.
