11 12 729 Checking cylinder head for watertightness (N57 Diesel)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

2 318 431 .
2 337 568 .

IMPORTANT: Pressure-test cylinder head to max. 3 bar.
Heat cylinder head to 60 °.
Check for formation of bubbles in a water bath.

Necessary preliminary tasks:

Remove CYLINDER HEAD .
Disassemble CYLINDER HEAD .

NOTE: Mounting special tool 2 318 431 .

Secure special tool 2 318 431 with the original cylinder head bolts (1).

Tightening torque: 25 Nm .

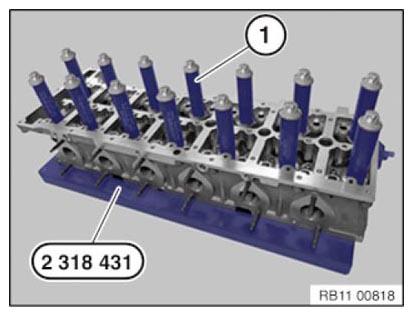

Fig 1: Identifying Original Cylinder Head Bolts And Special Tool (2 318 431)

Courtesy of BMW OF NORTH AMERICA, INC.

Secure special tool 2 337 568 with bolts (1).

NOTE: Compressed air at valve (1) must not exceed 3 bar .
Heat cylinder head to 60 °.
Check for formation of bubbles in a water bath.

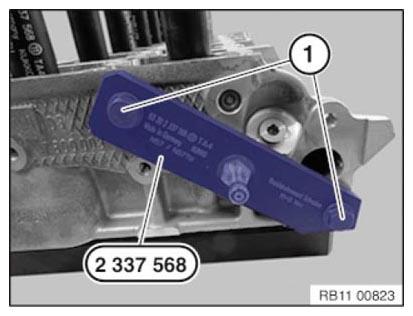

Fig 2: Securing Special Tool (2 337 568) With Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
