11 12 501 Replacing cylinder head gasket (N57 Diesel)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove CYLINDER HEAD .

The cylinder head gasket is designed as a beaded metal gasket.

Pay attention to gasket thickness (1).

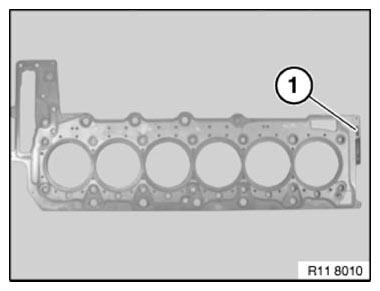

Fig 1: Identifying Gasket Thickness

Courtesy of BMW OF NORTH AMERICA, INC.

Highest piston protrusion at measuring points (1 and 2) of all 4 pistons determines thickness of cylinder head gasket.

Piston protrusion up to 0.92 mm

Install 1-hole cylinder head gasket.

Piston protrusion >0.92... 1.03 mm

Install 2-hole cylinder head gasket.

Piston protrusion greater than

>1.03... 1.18 mm

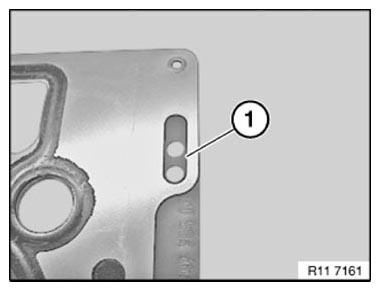

Fig 2: Identifying Thickness Marking

Courtesy of BMW OF NORTH AMERICA, INC.

Install 3-hole cylinder head gasket.

Assemble engine.
