11 12 101 Replacing cylinder head gasket (N52)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 4 430 .
11 4 470 .

IMPORTANT: Aluminum-magnesium materials .
No steel screws/bolts may be used due to the threat of electrochemical corrosion.
A magnesium crankcase requires aluminum screws/bolts exclusively.
Aluminum screws/bolts must be replaced each time they are released .
Aluminum screws/bolts are permitted with and without color coding (blue).
For reliable identification:
Aluminum screws/bolts are not magnetic .
Joining torque and angle of rotation must be observed without fail (risk of damage) .

Necessary preliminary work:

Remove CYLINDER HEAD .

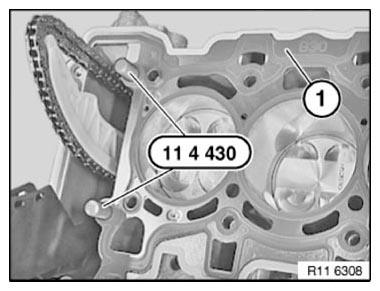

Insert 11 4 430 special tool into bore holes.

Remove cylinder head gasket.

IMPORTANT: Check marking (1) on cylinder head gasket (B25 or B30).

B = gasoline engine
30= displacement (3 liters)

Do not mix them up as this will cause engine damage .

Fig 1: Inserting Special Tool (11 4 430) Into Bore Holes

G09919520

Courtesy of BMW OF NORTH AMERICA, INC.

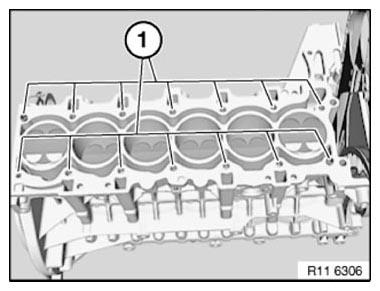

There must be no fluids or contaminants in any of the threaded holes (1) for the cylinder head bolt connections.

IMPORTANT: Work on sealing surface on engine block and on cylinder head with special tool 11 4 470 only.
Do not use any metal-cutting tools.

Fig 2: Identifying Threaded Holes For Cylinder Head Bolt Connections

G09919521

Courtesy of BMW OF NORTH AMERICA, INC.

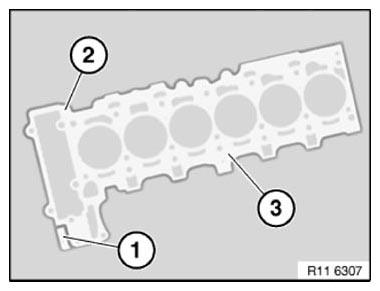

IMPORTANT: Rubber coating (2) on cylinder head gasket (3) must not under any circumstances be damaged (electrochemical corrosion).

Cylinder head gasket (3) is a sheet-metal gasket.

Fig 3: Identifying Cylinder Head Gasket And Rubber Coating

G09919522

Courtesy of BMW OF NORTH AMERICA, INC.

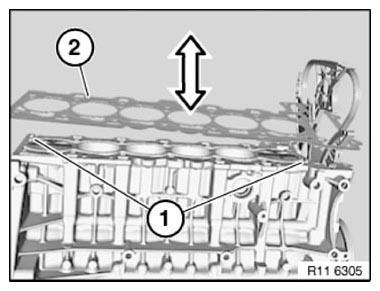

Check adapter sleeves (1) for damage and firm seating.

Place cylinder head gasket (2) in direction of arrow on engine block.

Fig 4: Identifying Adapter Sleeves And Cylinder Head Gasket

G09919523

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check cylinder head for DEVIATION FROM FLATNESS .
Check cylinder head for WATER LEAKS .

Assemble engine.
