11 12 090 Removing and installing/replacing acoustic cover (N20)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Unlock and pull off vacuum connections (1) and (2) from vacuum accumulator.

Fig 1: Identifying Vacuum Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Release wiring harness (1).

Remove acoustic cover (2) in following steps:

Lift up in the front area.
Pull out from rear rubber guide in direction of travel.

Installation note:

Insert acoustic cover into existing rubber guides.

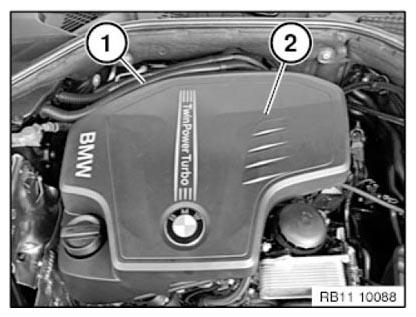

Fig 2: Identifying Acoustic Cover And Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.
