Center console operating facility
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.
The vehicle can be configured depending on the driving situation and the driver's choice. Here, the following functions can be influenced:
- Dynamic Stability Control setting
- Engine response characteristics
- Characteristic curves of the shock absorbers
- Characteristic curves of the steering (Servotronic)
- Shift program of the twin-clutch gearbox via Drivelogic
The settings can be further influenced individually via the standard control center.
The M Drive configuration also includes the Head-Up Display which belongs to the standard equipment of the new BMW M5.
The M-specific version of the Head-Up Display shows the selected gear as well is a multicolored engine speed display, including the display for the optimum shift point, in addition to the digital road speed information.

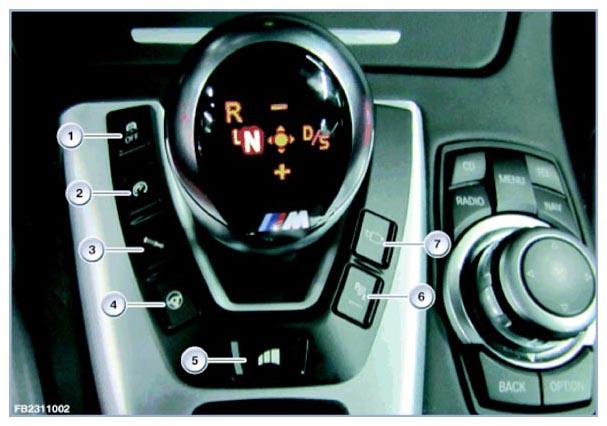

| Item | Explanation |
|---|---|
| 1 | Dynamic Stability Control button: Electrically connected to the Integrated Chassis Management (ICM) |
| 2 | Engine control button: Electrically connected to the Digital Motor Electronics (DME) |
| 3 | Shock absorber button: Electrically connected to the Integrated Chassis Management (ICM) |
| 4 | Servotronic steering button Electrically connected to the Digital Motor Electronics 2 (DME2), from there via the bus signal to the Servotronic (SVT) |
| 5 | Drivelogic rocker switch (or button): Electrically connected to the gear selector switch (GWS) |
| 6 | Parking Assist button |
| 7 | Side View Camera button |
