Functional networking
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

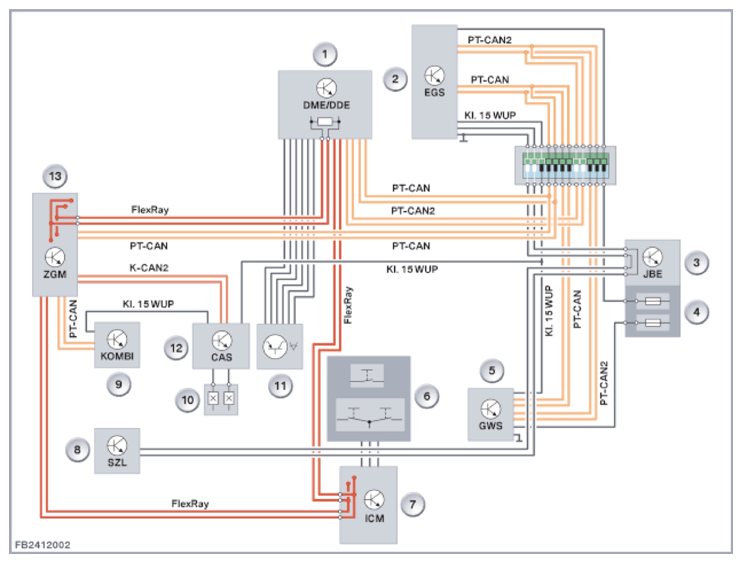

The following system overview shows the functional networking using the example of F01.
not illustrated: Functional networking with front electronic module (FEM), e.g. F30.
| Item | Explanation |
|---|---|
| 1 | DME (Digital Engine Electronics) or DDE (Digital Diesel Electronics) |
| 2 | Electronic transmission control (EGS) |
| 3 | Junction Box Electronics (JBE) |
| 4 | Front fuse and relay module |
| 5 | Gear selector switch (GWS) |
| 6 | Center console operating facility |
| 7 | Integrated chassis management (ICM) |
| 8 | Steering column switch center (SZL) |
| 9 | Instrument panel (KOMBI) |
| 10 | Brake light switch |
| 11 | Accelerator pedal module |
| 12 | Car access system (CAS) |
| 13 | Central gateway module (ZGM) |
