Emergency release
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Just like for the conventional 8-speed automatic gearbox, the option for mechanical emergency release from the vehicle underside and an electronic emergency release are available for the GA8P70HZ as well.

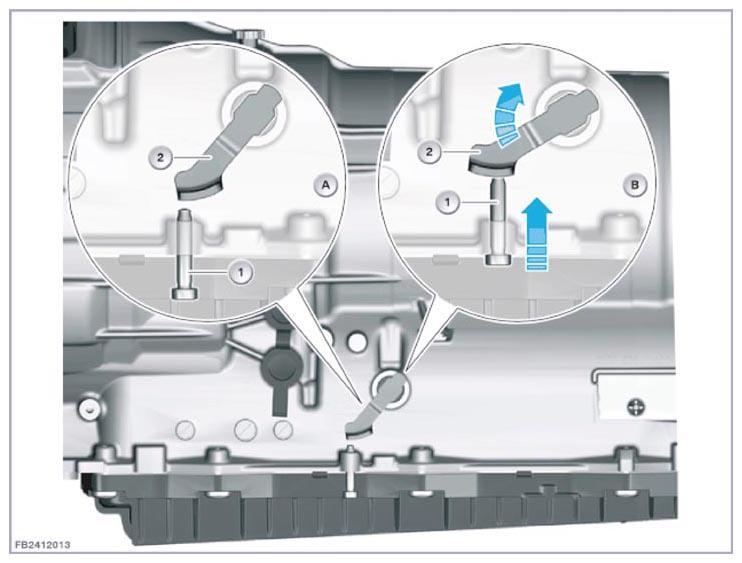

| Item | Explanation |
|---|---|
| A | Parking lock engaged |
| B | Parking lock released |
| 1 | Set screw |
| 2 | Parking lock lever |
