Transmission oil pump

WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

The oil supply has the following tasks:

Lubrication
Controlling the shift elements
Cooling

The mechanical oil pump is drive by a roller gear chain from the transmission input shaft. When the separation clutch is open, the drive occurs through the electrical machine, with closed separation clutch through the combination of combustion engine and electrical machine.

The electric transmission oil pump ensures a transmission oil pressure supply in operating ranges with insufficient speed at the transmission input shaft.

The electric gearbox oil pump is a vane-type pump in the same way as the mechanical oil pump. It is driven by a brush less direct current motor. The control electronics is integrated in the housing of the electric transmission oil pump and is activated by the electronic transmission control (EGS). The electric gearbox oil pump can be operated as of a gearbox oil temperature of 0 ° C. In the automatic transmission GA8P70HZ the electric transmission oil pump will use the installation space of the hydraulic impulse storage that is known from F04.

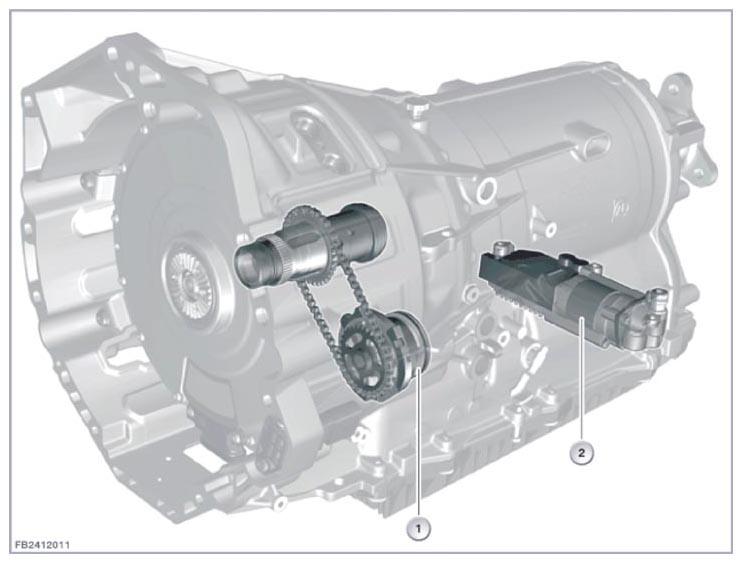

Fig 1: Identifying Mechanical Transmission Oil Pump And Electric Vacuum Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Item	Explanation
1	Mechanical transmission oil pump
2	Electric vacuum pump

NOTE: In the event of a fault, the electric transmission oil pump can be replaced.

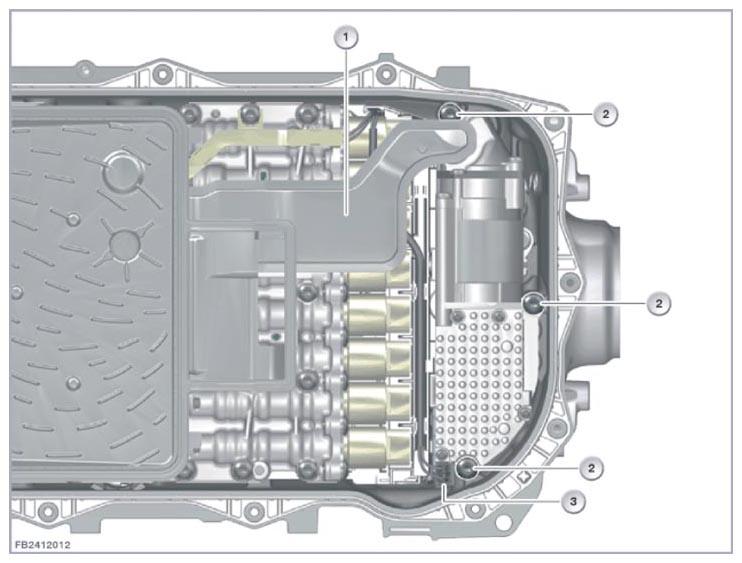

Fig 2: Identifying Transmission Oil Pump Bolt Points

Courtesy of BMW OF NORTH AMERICA, INC.

Item	Explanation
1	Intake pipe
2	Bolting points of the electric transmission oil pump.
3	Electrical connection
