Torsional vibration damper
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The torsional vibration damper can be replaced in the event of fault.
The uneven run and resulting torsional vibrations of combustion engines may cause loud droning or rattling noises under certain operating conditions. To insulate the torsional vibrations, a torsional-vibration damper is used in the automatic transmission hybrid drive. The torsional-vibration damper sets up the mechanical connection between the flywheel of the combustion engine and the separating clutch of the automatic transmission.

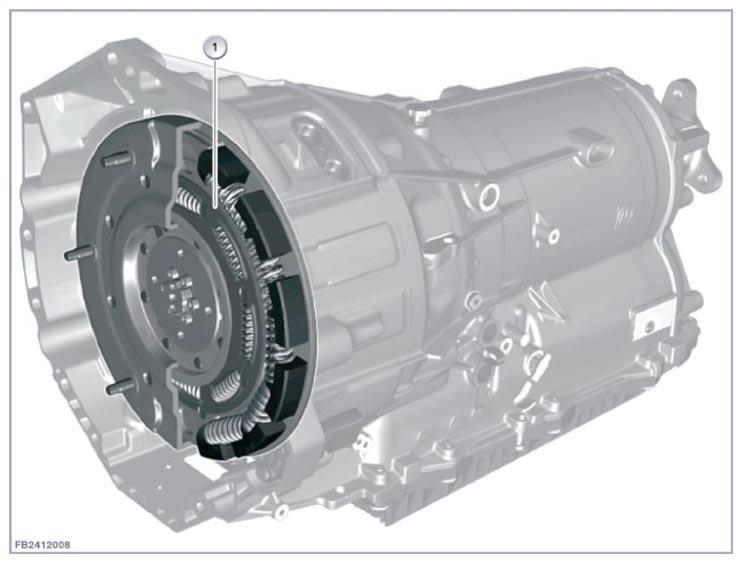

| Item | Explanation |
|---|---|
| 1 | Torsional vibration damper |
