Auxiliary heater does not function/intermittently does not function

WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

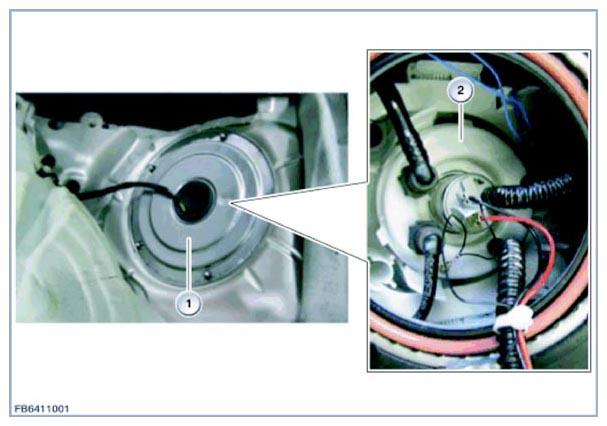

Fig 1: Identifying Fuel Tank Sensor And Electric Fuel Pump
G09908104Courtesy of BMW OF NORTH AMERICA, INC.
Index Explanation
1 Sensor opening to fuel tank
2 Electric fuel pump

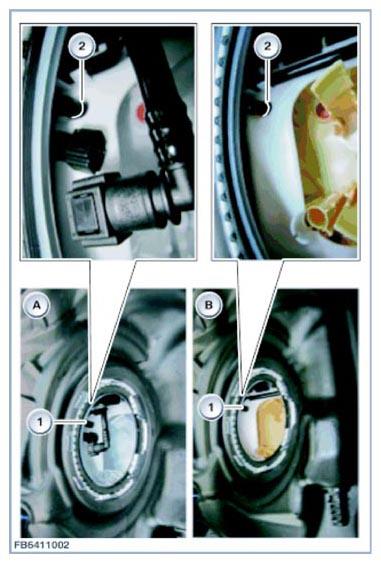

Fig 2: Identifying Fuel Tank Sensor And Electric Fuel Pump
G09908105Courtesy of BMW OF NORTH AMERICA, INC.
Index Explanation
A, B A: Petrol; B: Diesel
A.1/B.1 Suction jet line
A.2/B.2 Mark on suction jet line at level of surge tank cover

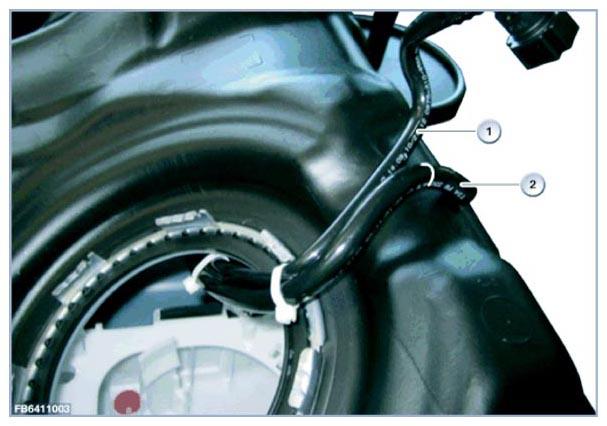

Fig 3: Identifying Fuel Line And Suction Jet Line
G09908106Courtesy of BMW OF NORTH AMERICA, INC.
Index Explanation
1 Fuel line
2 Suction jet line

Illustration 4

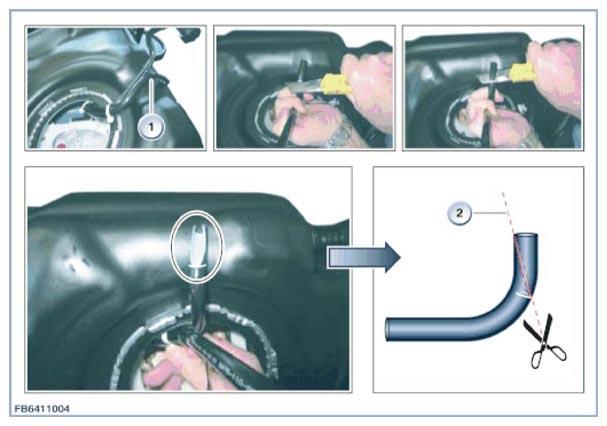

Fig 4: Cutting Suction Jet Line
G09908107Courtesy of BMW OF NORTH AMERICA, INC.
Index Explanation
1 Suction jet line
2 Cut off suction jet line diagonally from mark
