8-speed automatic transmission (3rd generation) for hybrid drive: Notes

WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

The automatic transmission GA8P75HZ is based on the automatic transmission GA8HP70Z and is also made by the company ZF.

This automatic transmission is the 3rd generation in vehicles with hybrid drive.

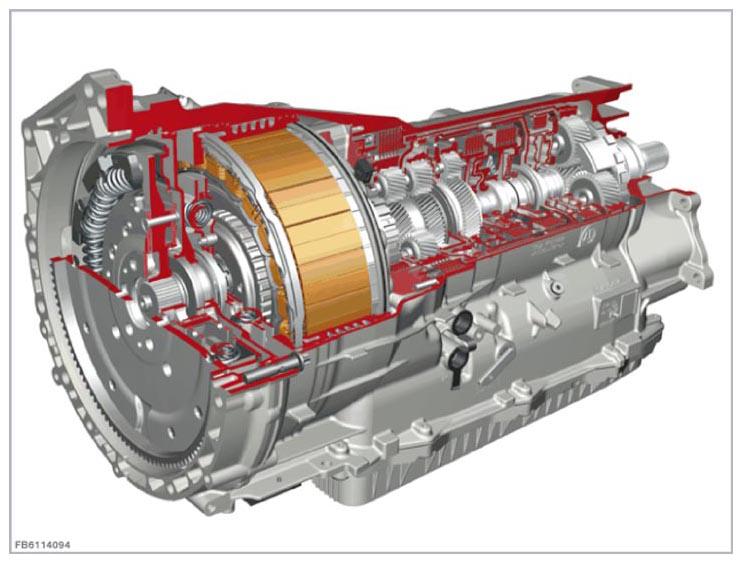

Fig 1: Identifying 8-Speed Automatic Transmission
G09907984Courtesy of BMW OF NORTH AMERICA, INC.
