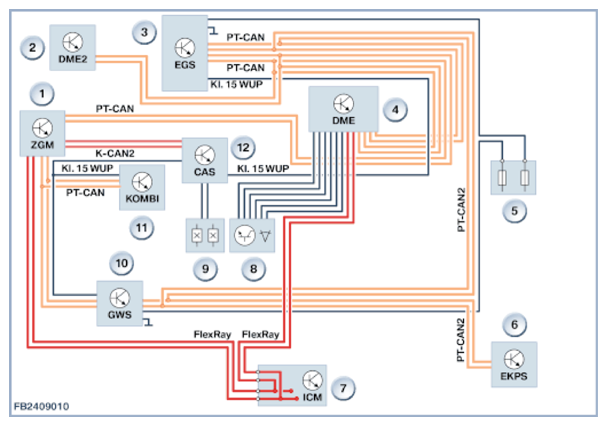

System overview
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.
| Index | Explanation |
|---|---|
| 1 | Central gateway module (ZGM) |
| 2 | Digital engine electronics 2 (DME2) |
| 3 | Electronic transmission control (EGS) |
| 4 | Digital engine electronics (DME) |
| 5 | Front power distribution box |
| 6 | Electric fuel pump control (EKPS) |
| 7 | Integrated chassis management (ICM) |
| 8 | Accelerator pedal module |
| 9 | Brake light switch |
| 10 | Gear selector switch (GWS) |
| 11 | Instrument cluster (KOMBI) |
| 12 | Car Access System (CAS) |
