Gear selector display

WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

The gear selector display is shown in the TFT display of the instrument panel (KOMBI). Faults are displayed by a bright, flashing gear selector diagram.

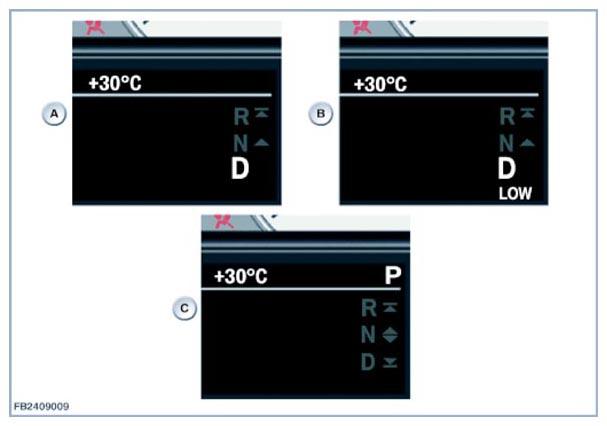

Fig 1: Display - Gear Selector Screen
G09907979Courtesy of BMW OF NORTH AMERICA, INC.

Graphic shows Rolls-Royce TFT display.

Index Explanation
A Selector lever position D
B Selector lever position D with {LOW} mode activated
C Parking lock
