Switch, trailer socket
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.
The trailer module (AHM) identifies a connected connector by the status of the trailer socket switch.
If a connector in the trailer socket is identified as connected, it is not possible to pivot the ball head in.
Courtesy of BMW OF NORTH AMERICA, INC.

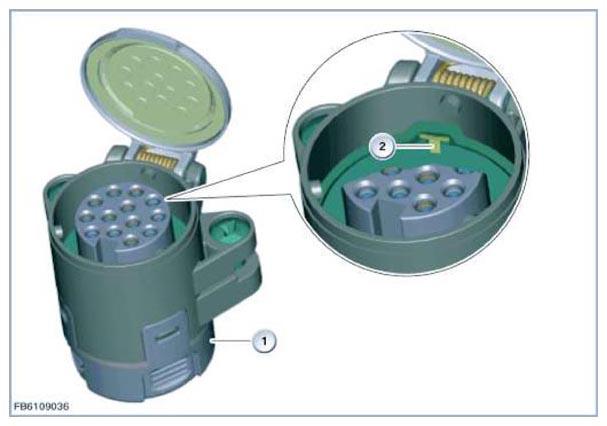

| Item |
Explanation |
| 1 |
Trailer socket |
| 2 |
Switch, trailer socket |
