Button for fully automatic trailer hitch
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.
Pressing the button prompts the fully automatic inwards or outwards pivoting movement of the ball head as far as each end position. Two colored LEDs are integrated into the button (green and red). The indicator light shows the system status.

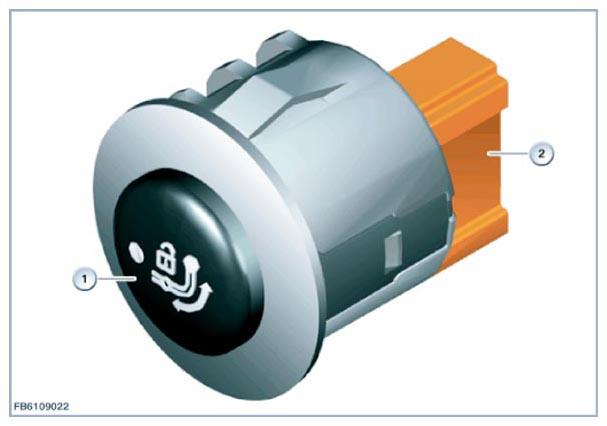

| Item | Explanation |
|---|---|
| 1 | Button for fully automatic trailer hitch |
| 2 | 4-pin plug connection |
