System overview
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

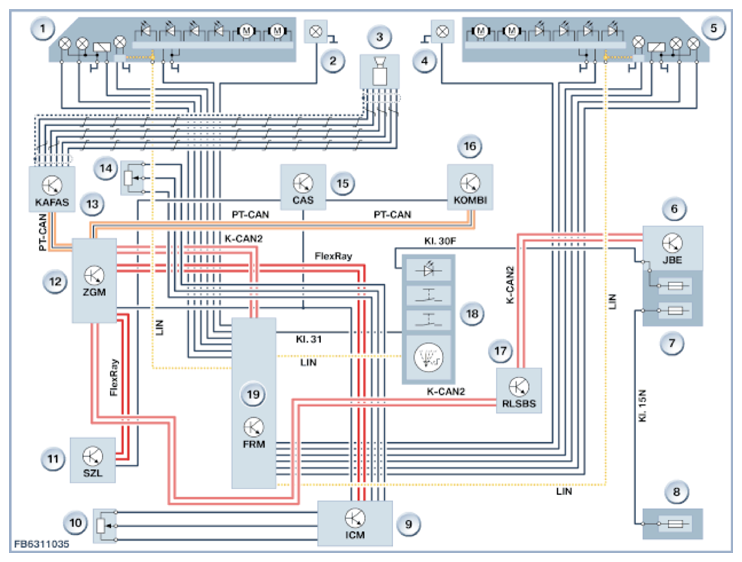

The graphic below shows the system network of the non-glare headlight assistant with KAFAS camera and xenon headlights on the example F10.
| Item | Explanation |
|---|---|
| 1 | Left headlight |
| 2 | Left fog light |
| 3 | Camera-based driver support systems camera |
| 4 | Right fog light |
| 5 | Right headlight |
| 6 | Junction Box Electronics (JBE) |
| 7 | Junction box electronics (JBE) power distribution box |
| 8 | Power distribution box |
| 9 | Integrated chassis management (ICM) |
| 10 | Ride height sensor, rear |
| 11 | Steering column switch cluster |
| 12 | Central gateway module (ZGM) |
| 13 | Camera-based driver support systems camera control unit (KAFAS) |
| 14 | Front ride height sensor |
| 15 | Car access system (CAS) |
| 16 | Instrument panel (KOMBI) |
| 17 | Rain-light-solar-condensation sensor |
| 18 | Operating facility for light |
| 19 | Footwell module (FRM) |

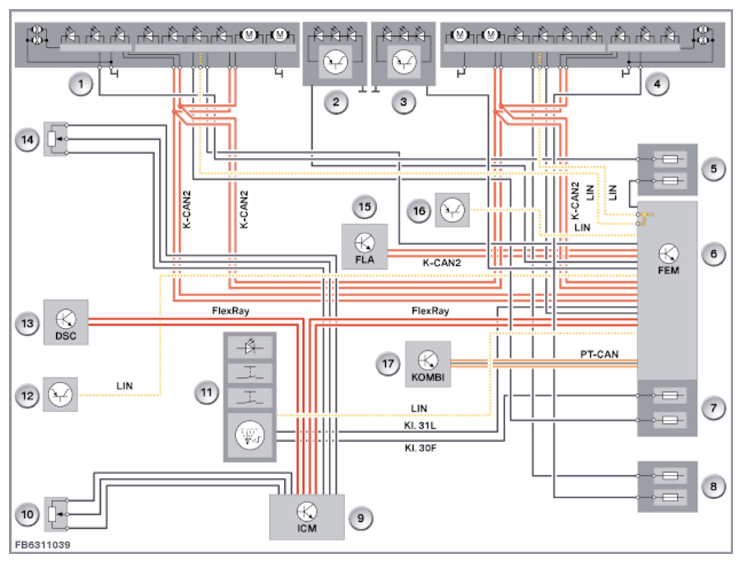

The graphic below shows the system network of the non-glare headlight assistant in the inside mirror and LED headlights on the example F32.
| Item | Explanation |
|---|---|
| 1 | Left headlight |
| 2 | Left fog light |
| 3 | Right fog light |
| 4 | Right headlight |
| 5 | Front fuse and relay module |
| 6 | Front Electronic Module (FEM) |
| 7 | Front electronic module power distribution box |
| 8 | Power distribution box, rear |
| 9 | Integrated chassis management (ICM) |
| 10 | Ride height sensor, rear |
| 11 | Operating facility for light |
| 12 | Steering column switch cluster |
| 13 | Dynamic stability control (DSC) |
| 14 | Front ride height sensor |
| 15 | Inside mirror with high-beam assistant |
| 16 | Rain-light-solar-condensation sensor |
| 17 | Instrument panel (KOMBI) |
