Operating facility for light
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

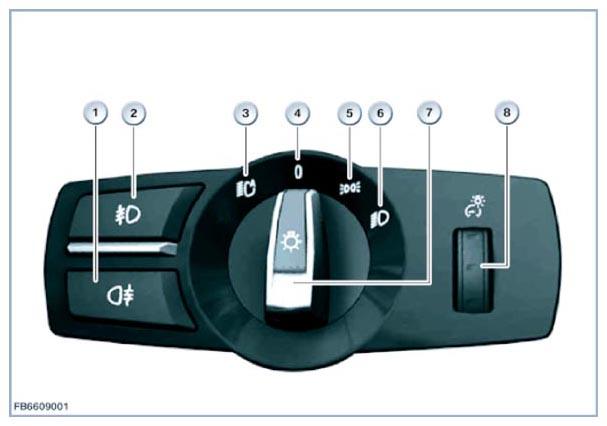

The exterior lights can be switched on and off at the operating facility for lights.
The operating facility for lights includes both the light switch and other components.
| Item | Explanation |
|---|---|
| 1 | Button for the rear fog lights |
| 2 | Button for the fog lights |
| 3 | Light switch in the switch position A (switch position for automatic driving lights control) |
| 4 | Switch position 0 for daytime driving lights |
| 5 | Switch position 1 for side lights |
| 6 | Switch position 2 for low-beam headlights |
| 7 | Rotary switch for lighting functions |
| 8 | Dimmer for instrument lighting |
