Left-hand targeted illumination and right-hand targeted illumination: Notes
Through the targeted illumination of persons on the roadway, the targeted illumination system raises the safety for all parties. A remote infra-red camera records the area in front of the vehicle and warns against persons on the street.
Depending on the environmental conditions, the targeted illumination system works in a range of approx. 30 to 100 meters. Persons, who are warned in this range, are illuminated with a targeted light beam. At the same time, a beam of light on the roadway guides the driver's attention from the vehicle up to the person in danger.

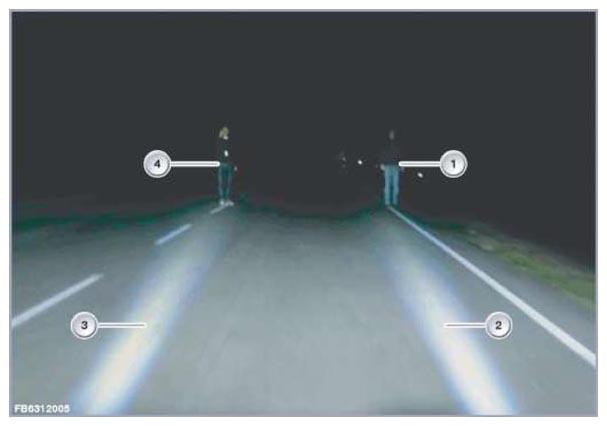

| Item | Explanation |
|---|---|
| 1 | Person illuminated by the light beam of the headlight for right-hand targeted illumination |
| 2 | Beam of light on the roadway from the headlight for right-hand targeted illumination |
| 3 | Beam of light on the roadway from the headlight for left-hand targeted illumination |
| 4 | Person illuminated by the light beam of the headlight for left-hand targeted illumination |
The fast horizontal pivoting headlights for illumination of persons are installed instead of the fog lights.
The targeted illumination system is optional equipment (SA5A3 BMW Night Vision with dynamic light spot).
